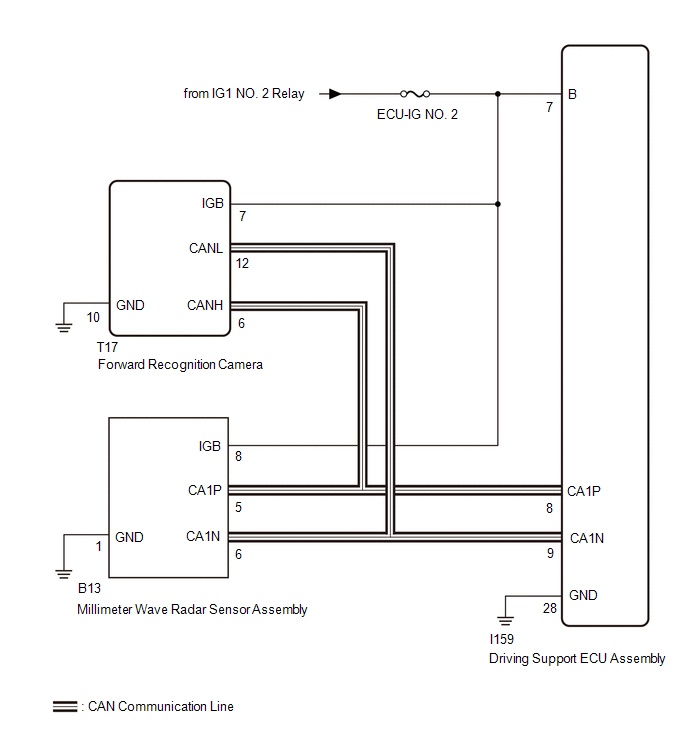

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [09/2017 - 05/2019]: Wiring Diagram

GTY777196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
