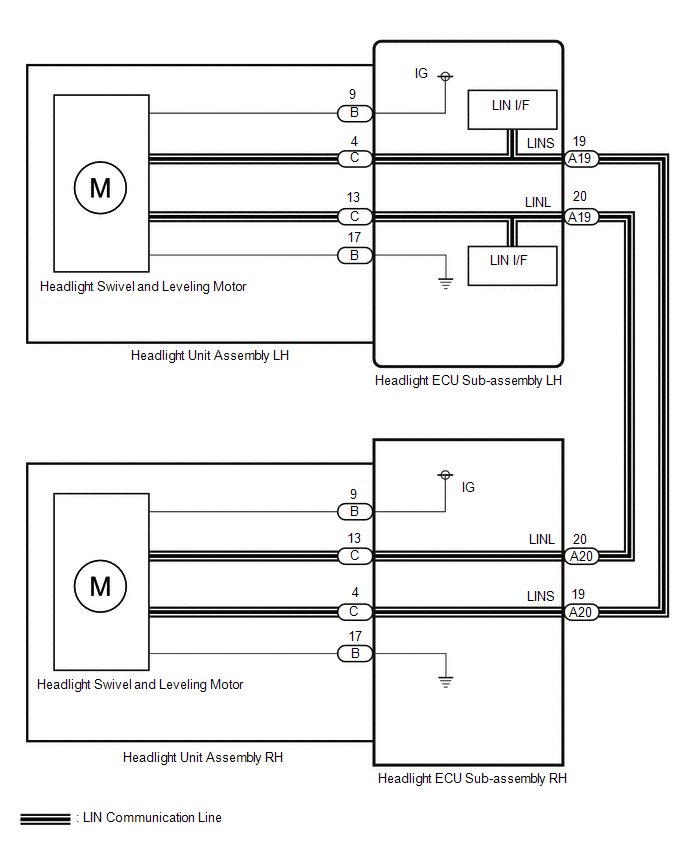

DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication; DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [09/2017 - ]: Wiring Diagram

GTY777086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
