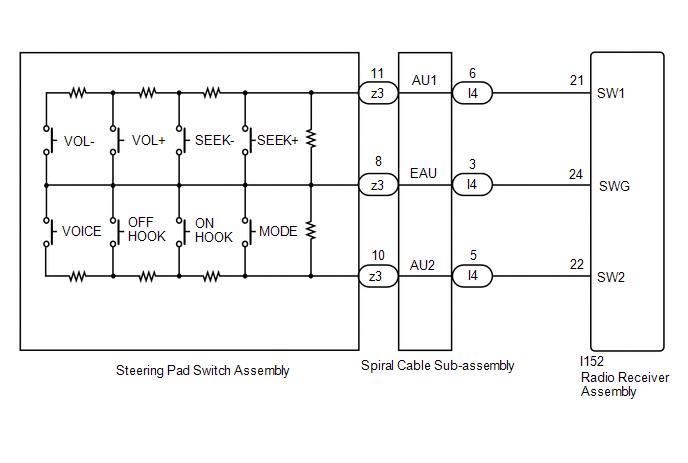

Steering Pad Switch Circuit [09/2017 - 05/2019]: Wiring Diagram

GTY959125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
