Components [10/2014 - 09/2017]

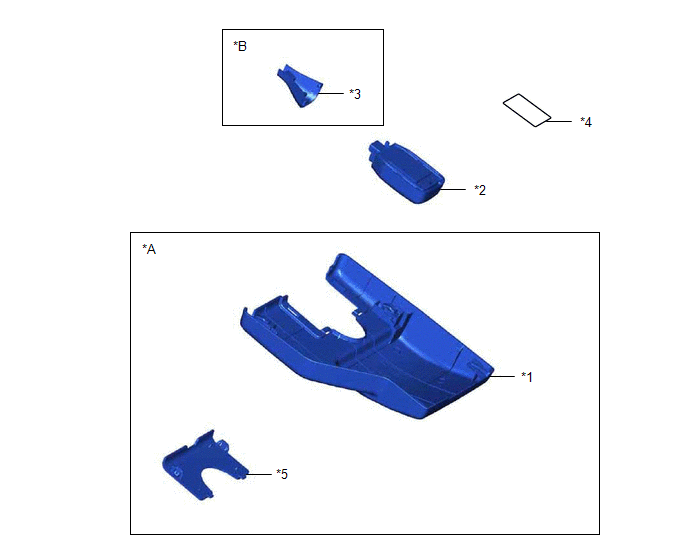

Fig 1: Rain Sensor Replacement Components
GTY517561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Lane Departure Alert System *B w/o Lane Departure Alert System
*1 NO. 1 LANE RECOGNITION COVER *2 RAIN SENSOR
*3 RAIN SENSOR COVER *4 RAIN SENSOR TAPE
*5 NO. 2 LANE RECOGNITION COVER - -
