Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Notes

For additional information, refer to Figure.

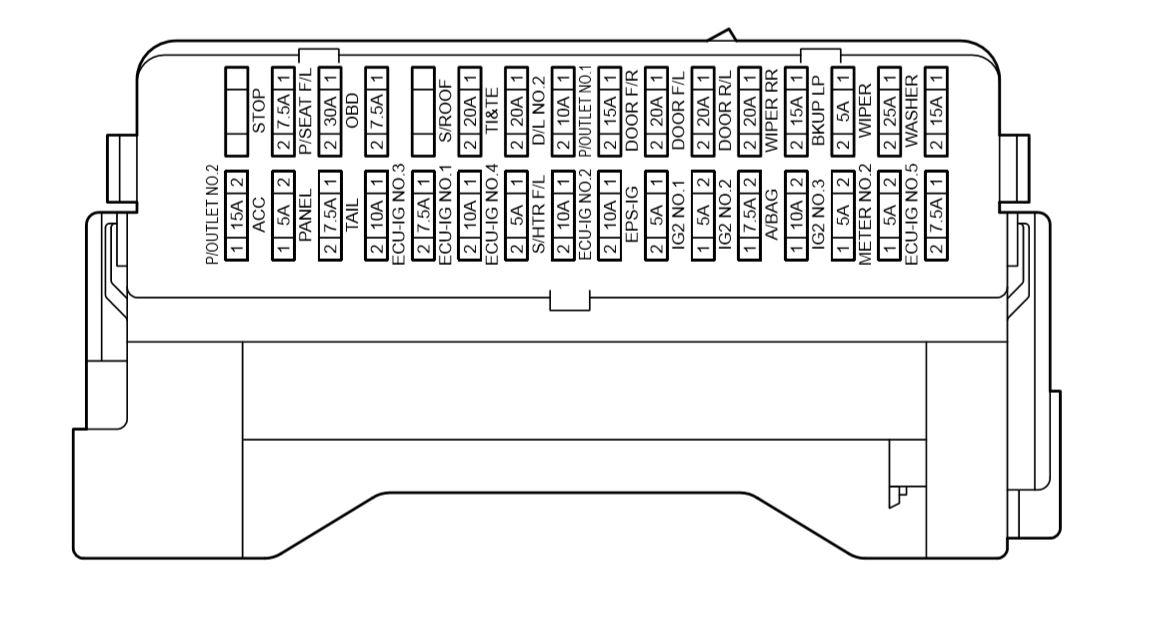

Fig 1: Instrument Panel J/B Assembly (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

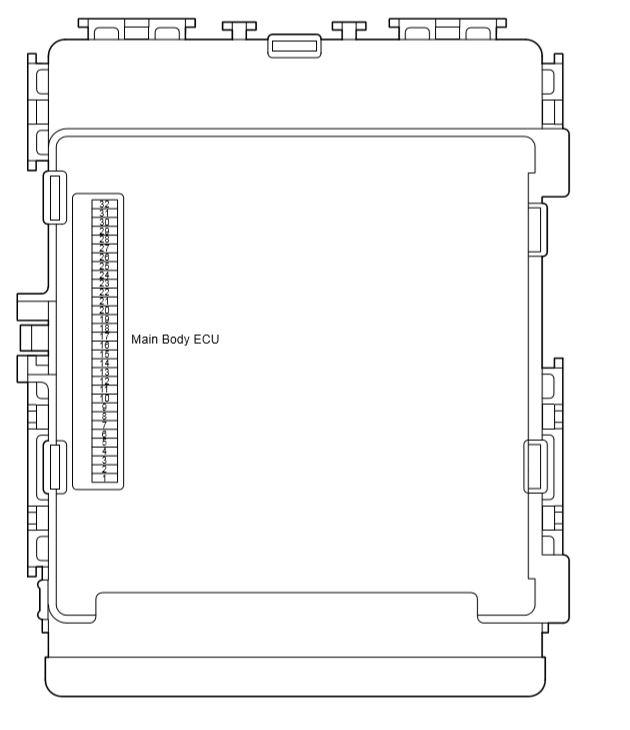

Fig 2: Instrument Panel J/B Assembly (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

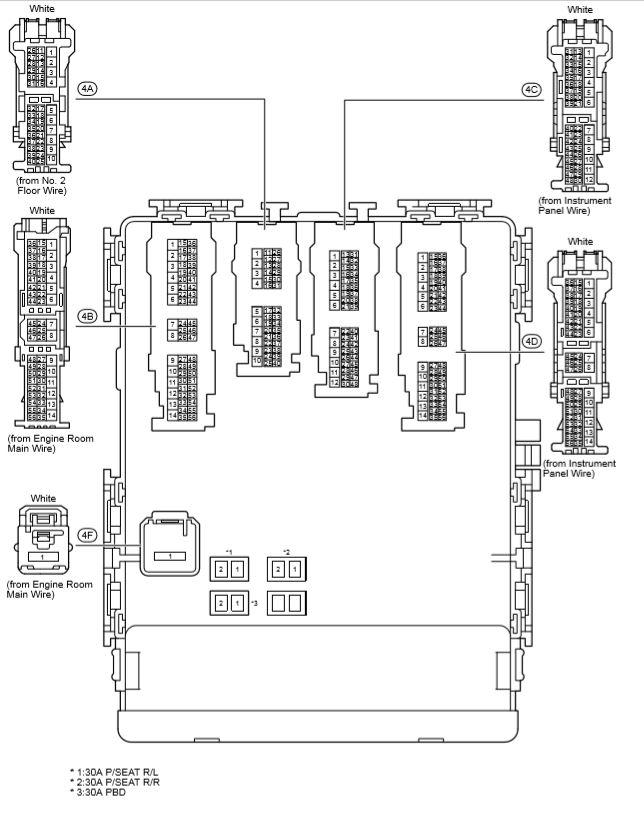

Fig 3: Instrument Panel J/B Assembly (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Instrument Panel Junction Block Assembly Fuse Identification Legend

FUSE
5A	ACC
5A	BKUP LP
5A	ECU-IG NO. 4
5A	EPS-IG
5A	IG2 NO. 1
5A	IG2 NO. 3
5A	METER NO. 2
7.5A	ECU-IG NO. 3
7.5A	ECU-IG NO. 5
7.5A	IG2 NO. 2
7.5A	OBD
7.5A	PANEL
7.5A	STOP
10A	A/BAG
10A	D/L NO. 2
10A	ECU-IG NO. 1
10A	ECU-IG NO. 2
10A	S/HTR F/L
10A	TAIL
15A	P/OUTLET NO. 1
15A	P/OUTLET NO. 2
15A	WASHER
15A	WIPER RR
20A	DOOR F/L
20A	DOOR F/R
20A	DOOR R/L
20A	S/ROOF
20A	TI&TE
25A	WIPER
30A	P/SEAT F/L
30A	P/SEAT R/L
30A	P/SEAT R/R
30A	PBD
