Instrument Panel Relay Block Assembly - Instrument Panel Reinforcement: Notes

For additional information, refer to Figure.

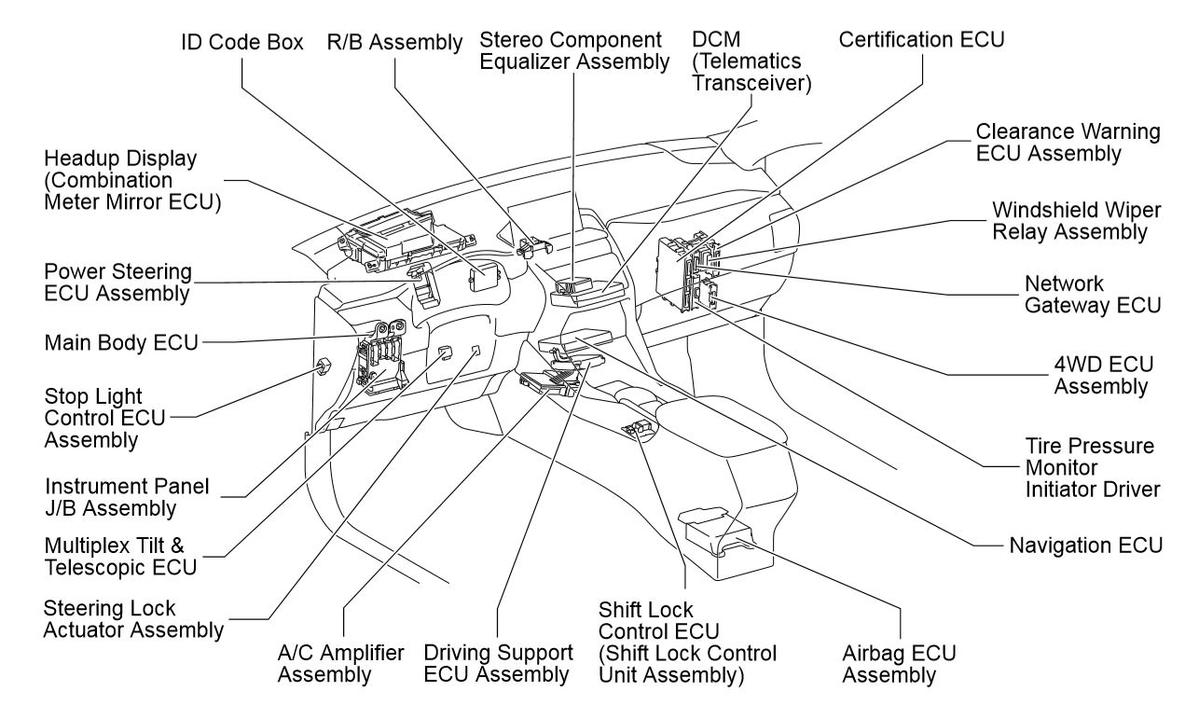

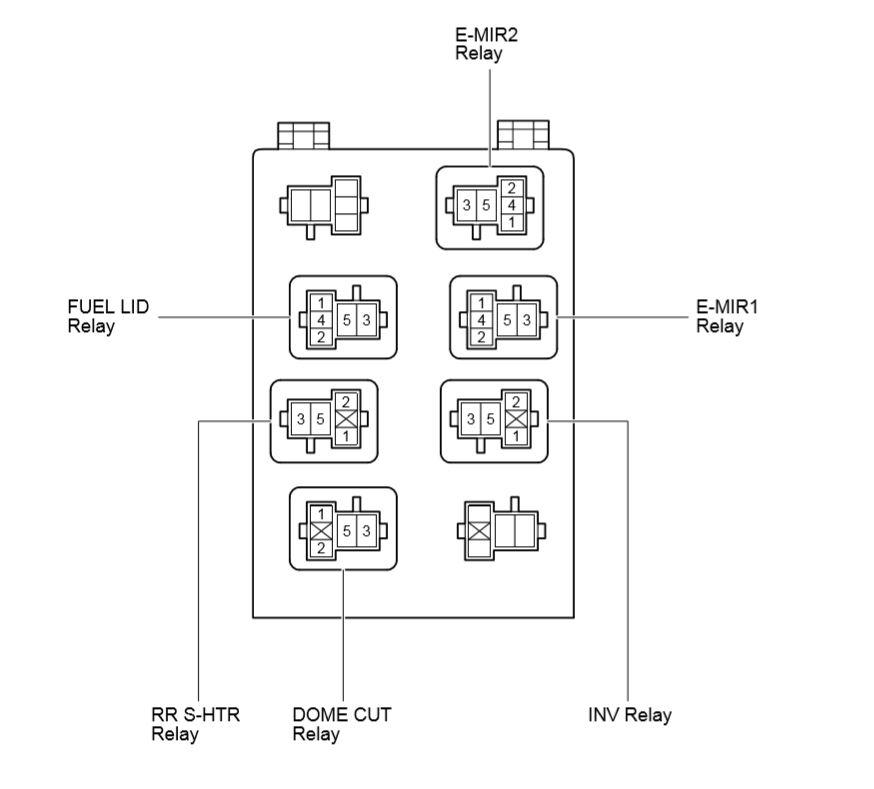

Fig 1: Instrument Panel R/B Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL R/B ASSEMBLY RELAY IDENTIFICATION

RELAY DESCRIPTION
FUEL LID Relay
RR S-HTR Relay
DOME CUT Relay
INV Relay
E-MIR1 Relay
E-MIR2 Relay
