Engine Room Relay Block Assembly and Engine Room Junction Block No. 1 Assembly Inner Circuit

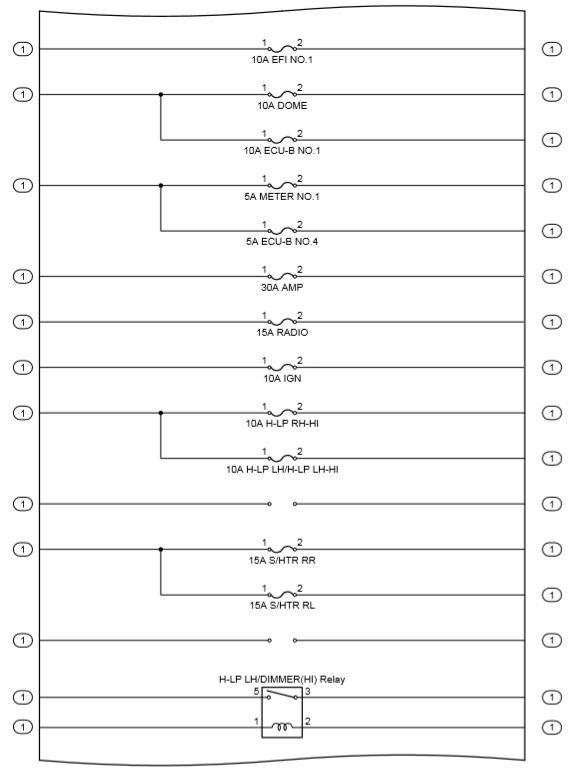

Fig 1: Engine Room R/B And J/B Assembly No. 1 Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

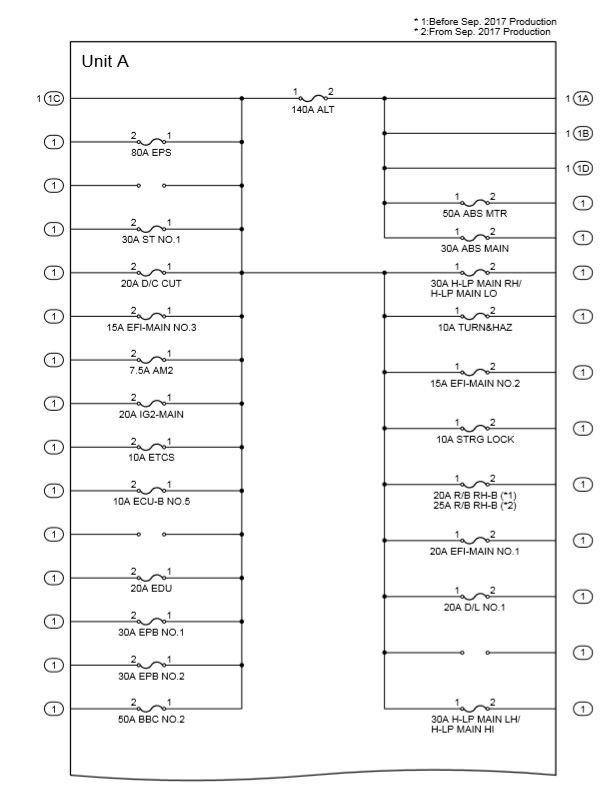

Fig 2: Engine Room R/B And J/B Assembly No. 1 Circuit Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 1 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
H-LP LH/DIMMER Relay

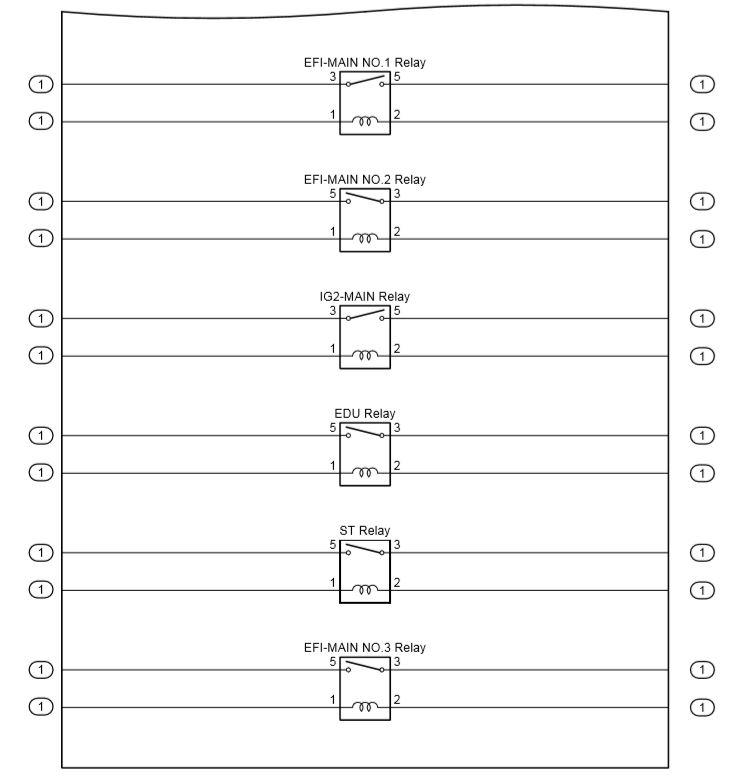

Fig 3: Engine Room R/B And J/B Assembly No. 1 Circuit Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 1 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI-MAIN NO. 1 Relay
EFI-MAIN NO. 2 Relay
IG2-MAIN Relay
EDU Relay
ST Relay
EFI-MAIN NO. 3 Relay
