DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [10/2014 - ]: Procedure

  1. CHECK DTC
    1. Turn the engine switch on (IG), and wait for at least 60 seconds.
    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Clear DTCs

      HINT:

      • First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the airbag ECU assembly.
      • Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
    3. Turn the engine switch off.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Trouble Codes

      Result

      Proceed to
      DTC B1793 is not output
      DTC B1793 is output

      HINT:

      DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

    Result:

    DTC B1793 is not output

    USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM [10/2014 - ]

    Result:

    DTC B1793 is output

    See step  2

  2. CHECK CONNECTION OF CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the occupant detection ECU, front and rear occupant classification sensor LH.

      Result

      Proceed to
      Connectors are properly connected
      Connectors are not properly connected

    Result:

    Connectors are not properly connected

    CHECK CONNECTORS

    Result:

    Connectors are properly connected

    See step  3

  3. CHECK CONNECTORS
    1. Disconnect the connectors from the occupant detection ECU, front and rear occupant classification sensor LH.

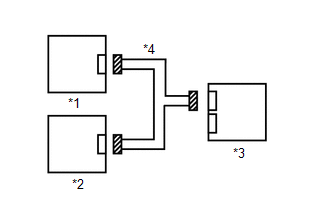

      GTY497026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Occupant Classification Sensor LH
      *2 Rear Occupant Classification Sensor LH
      *3 Occupant Detection ECU
      *4 Front Seat Wire RH
    2. Check that the connectors (on the occupant detection ECU side, front and rear occupant classification sensor LH side) are not damaged.

      Result

      Proceed to
      Connectors are not deformed or damaged
      Connectors are deformed or damaged

    Result:

    Connectors are deformed or damaged

    REPLACE FRONT SEAT WIRE RH

    Result:

    Connectors are not deformed or damaged

    See step  4

  4. CHECK FRONT SEAT WIRE RH
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

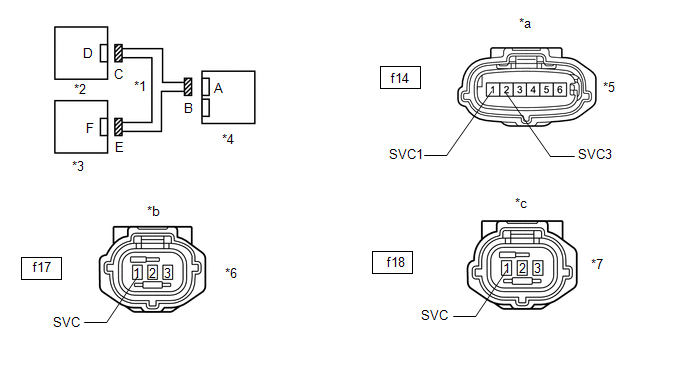

      GTY503502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Wire RH *2 Front Occupant Classification Sensor LH
      *3 Rear Occupant Classification Sensor LH *4 Occupant Detection ECU
      *5 Connector B *6 Connector C
      *7 Connector E - -
      *a Front view of wire harness connector
      (to Occupant Detection ECU)      		 *b Front view of wire harness connector
      (to Front Occupant Classification Sensor LH)
      *c Front view of wire harness connector
      (to Rear Occupant Classification Sensor LH)      		 - -
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      f14-1 (SVC1) - Body ground Engine switch on (IG) Below 1 V
      f14-2 (SVC3) - Body ground
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      f14-1 (SVC1) - f17-1 (SVC) Always Below 1 Ω
      f14-2 (SVC3) - f18-1 (SVC)
      f14-1 (SVC1) - f14-2 (SVC3) 1 MΩ or higher
      f14-1 (SVC1) - Body ground
      f14-2 (SVC3) - Body ground

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT WIRE RH

    Result:

    OK

    See step  5

  5. CHECK DTC
    1. Connect the connectors to occupant detection ECU, front and rear occupant classification sensor LH.
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Clear DTCs

      HINT:

      • First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the airbag ECU assembly.
      • Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Trouble Codes

      Result

      Proceed to
      DTC B1793 is not output
      DTC B1793 is output

      HINT:

      DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

    Result:

    DTC B1793 is not output

    USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM [10/2014 - ]

    Result:

    DTC B1793 is output

    See step  6

  6. REPLACE OCCUPANT DETECTION ECU
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Replace the occupant detection ECU.

      Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]

      HINT:

      Perform the inspection using parts from a normal vehicle when possible.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  7

  7. PERFORM ZERO POINT CALIBRATION
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    2. Turn the engine switch on (IG).
    3. Perform the zero point calibration.

      Refer to INITIALIZATION [10/2014 - ]

      Result

      Proceed to
      "Zero Point Calibration is complete." is displayed
      "Zero Point Calibration is complete." is not displayed

    Result:

    "Zero Point Calibration is complete." is not displayed

    See step  10

    Result:

    "Zero Point Calibration is complete." is displayed

    See step  8

  8. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check.

      Refer to INITIALIZATION [10/2014 - ]

      Standard

      27 to 33 kg (59.5 to 72.8 lb)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  9

  9. CHECK DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Clear DTCs

      HINT:

      • First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the airbag ECU assembly.
      • Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
    2. Turn the engine switch off.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - ]

      Body Electrical > Occupant Detection > Trouble Codes

      Result

      Proceed to
      DTC B1793 is not output
      DTC B1793 is output

      HINT:

      DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

    Result:

    DTC B1793 is not output

    END (OCCUPANT DETECTION ECU WAS DEFECTIVE)

    Result:

    DTC B1793 is output

    See step  10

  10. REPLACE FRONT SEAT ADJUSTER ASSEMBLY RH (FRONT AND REAR OCCUPANT CLASSIFICATION SENSOR LH)
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Replace the front seat adjuster assembly RH.

      Refer to DISASSEMBLY [10/2014 - ]

      HINT:

      Perform the inspection using parts from a normal vehicle when possible.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  11

  11. PERFORM ZERO POINT CALIBRATION
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    2. Turn the engine switch on (IG).
    3. Perform the zero point calibration.

      Refer to INITIALIZATION [10/2014 - ]

      Result

      Proceed to
      "Zero Point Calibration is complete." is displayed

    Result:

    "Zero Point Calibration is complete." is displayed

    See step  12

  12. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check.

      Refer to INITIALIZATION [10/2014 - ]

      Standard

      27 to 33 kg (59.5 to 72.8 lb)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    END (FRONT SEAT ADJUSTER ASSEMBLY RH [FRONT AND REAR OCCUPANT CLASSIFICATION SENSOR LH] WAS DEFECTIVE)
