System Diagram [01/2019 - 10/2019]

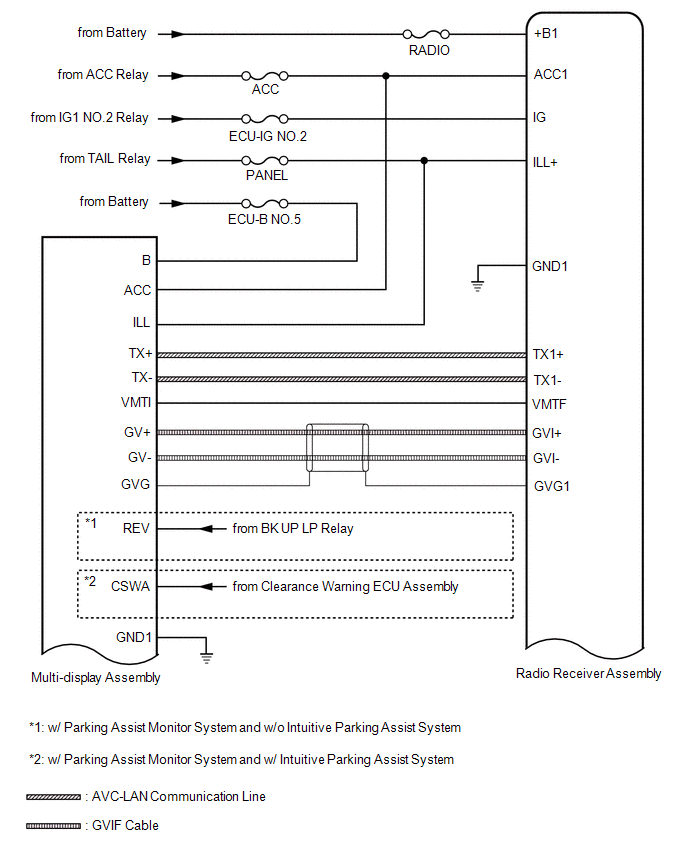

Fig 1: Navigation System Diagram (1 Of 12)
GTY825510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

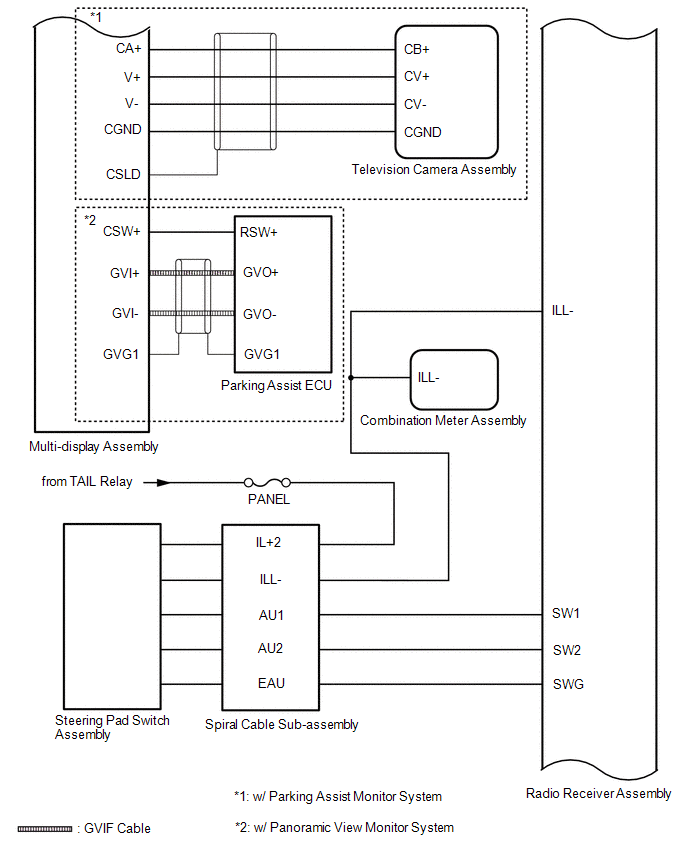

Fig 2: Navigation System Diagram (2 Of 12)
GTY959957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Navigation System Diagram (3 Of 12)
GTY960014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

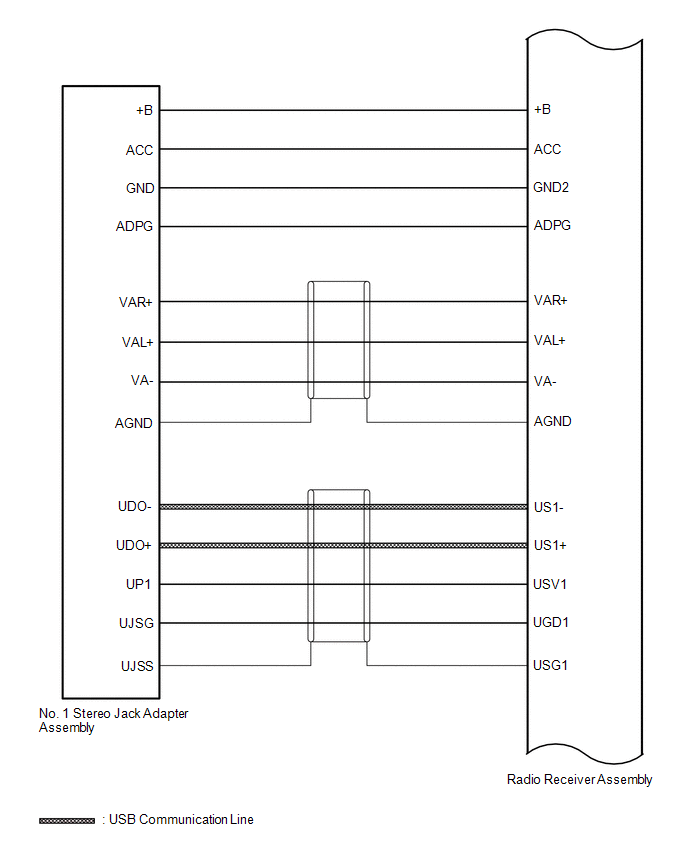

Fig 4: Navigation System Diagram (4 Of 12)
GTY815491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

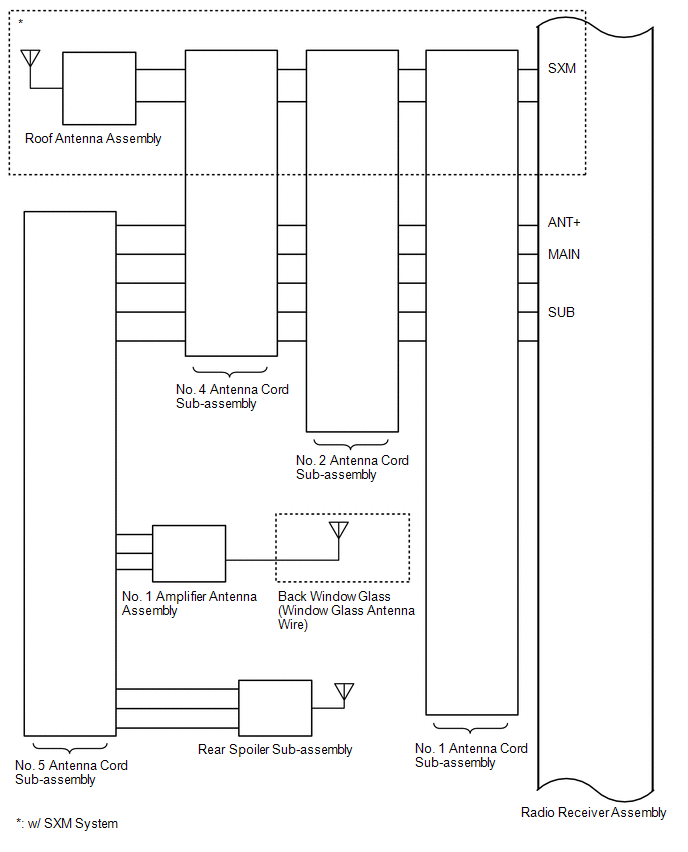

Fig 5: Navigation System Diagram (5 Of 12)
GTY804996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

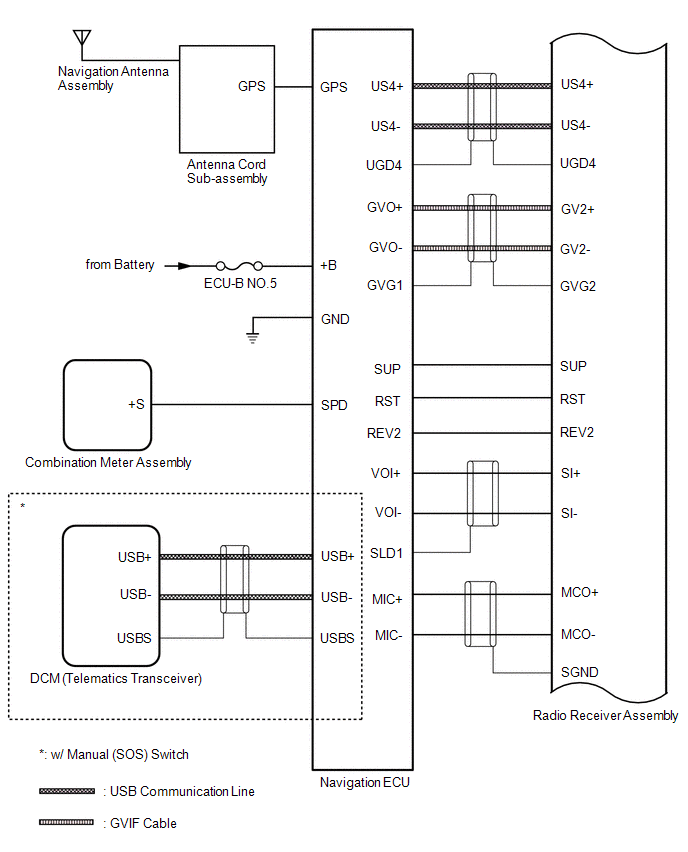

Fig 6: Navigation System Diagram (6 Of 12)
GTY811536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

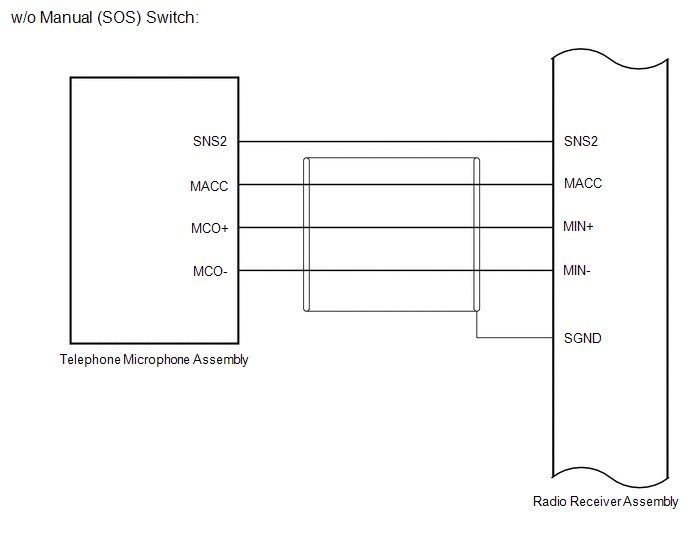

Fig 7: Navigation System Diagram (W/o Manual SOS Switch) (7 Of 12)
GTY800988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

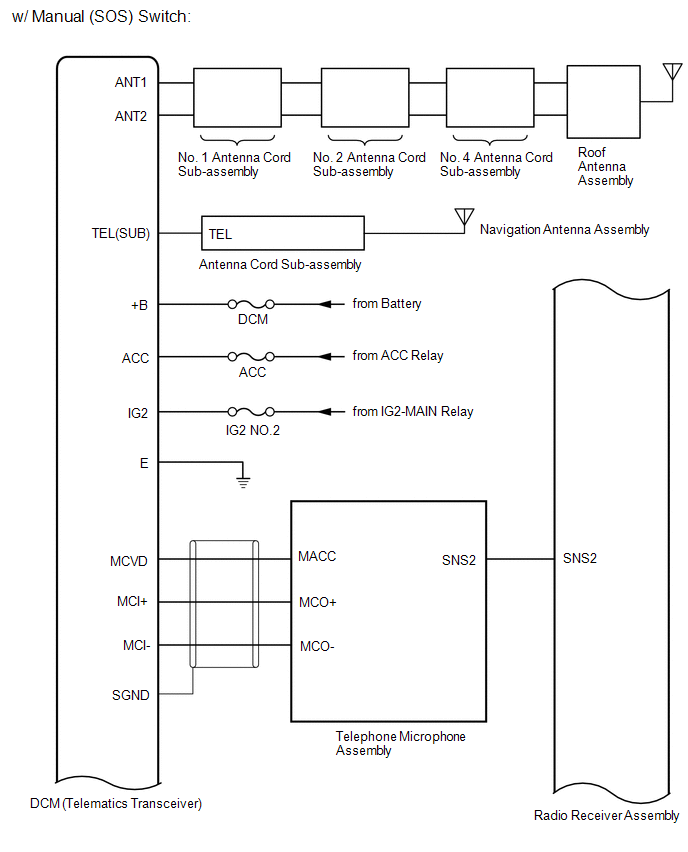

Fig 8: Navigation System Diagram (W/ Manual SOS Switch) (8 Of 12)
GTY808584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

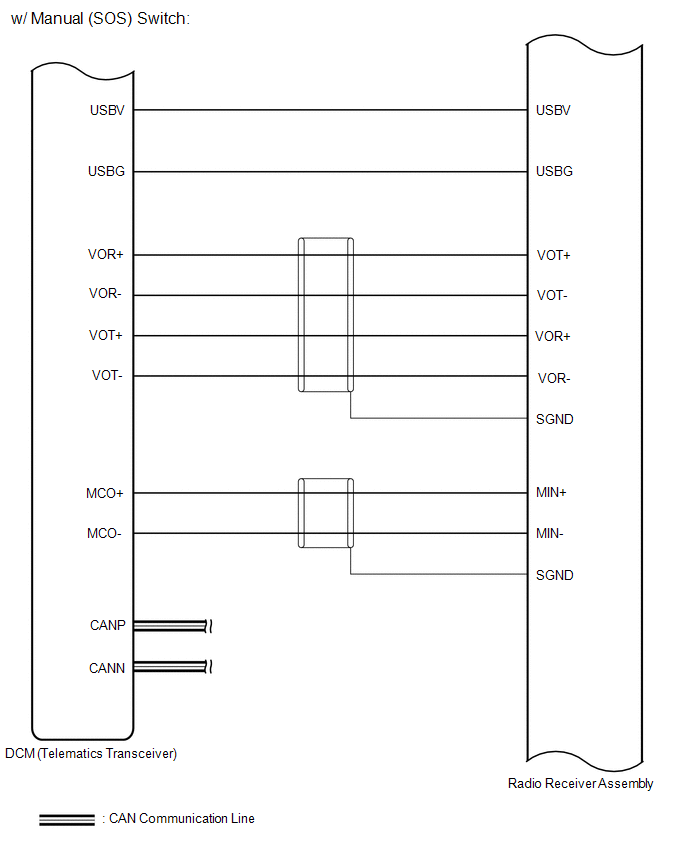

Fig 9: Navigation System Diagram (W/ Manual SOS Switch) (9 Of 12)
GTY816925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

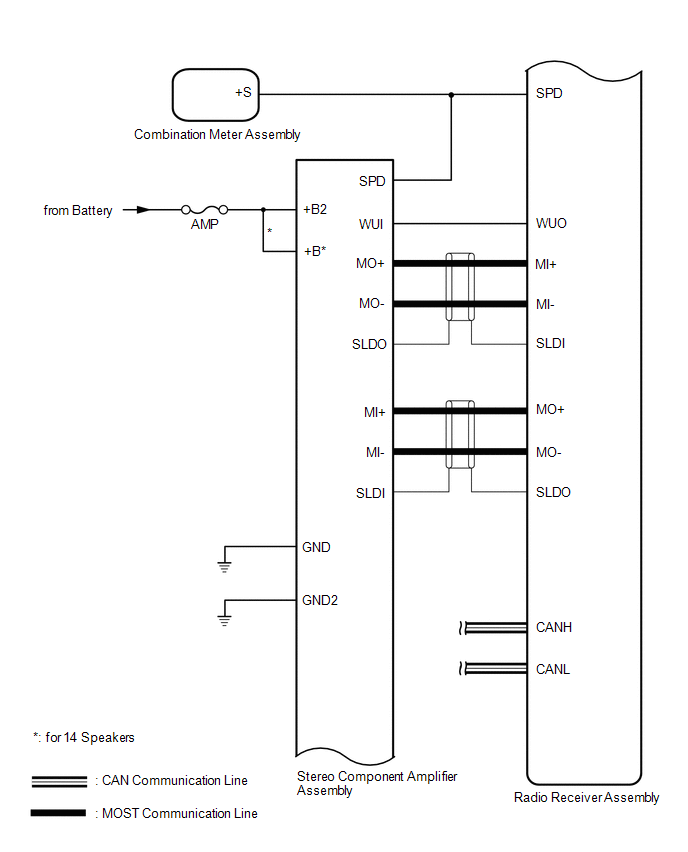

Fig 10: Navigation System Diagram (10 Of 12)
GTY961161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

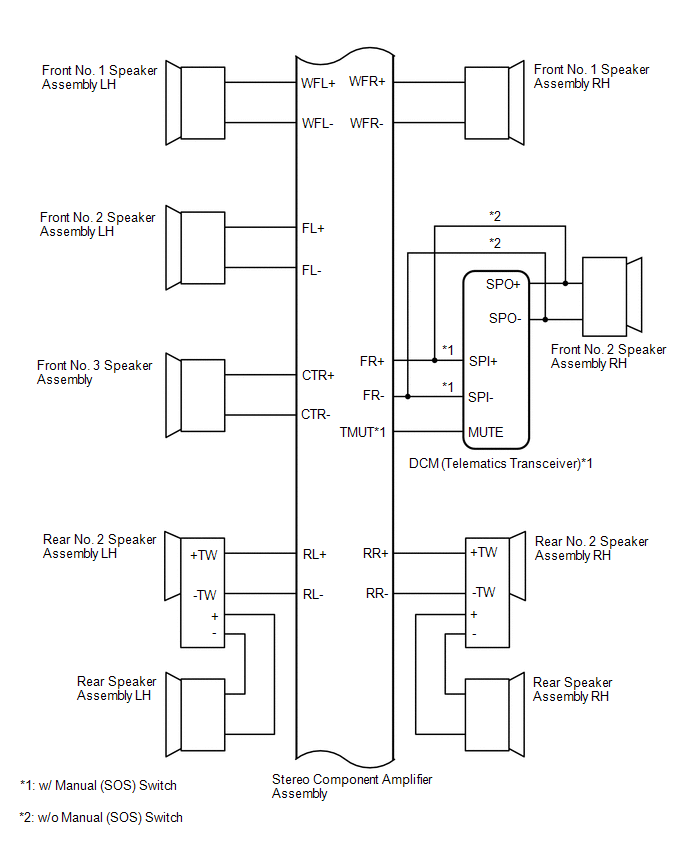

Fig 11: Navigation System Diagram (11 Of 12)
GTY960901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

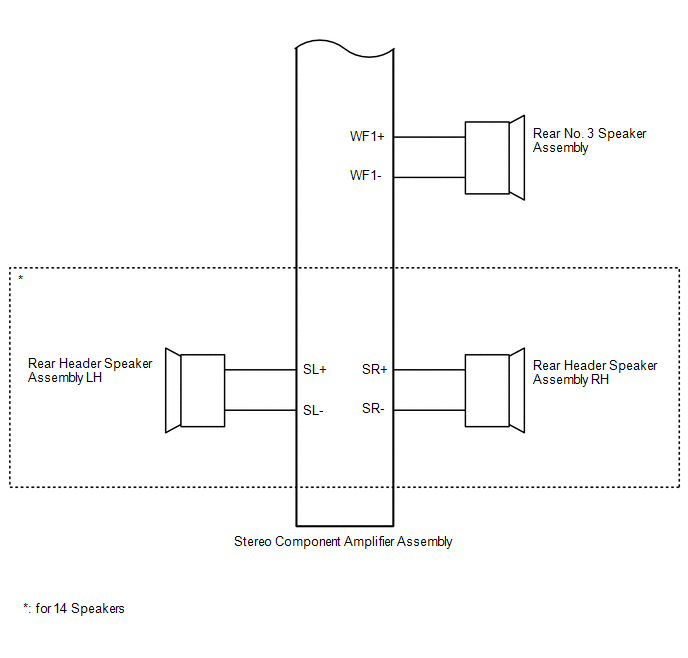

Fig 12: Navigation System Diagram (12 Of 12)
GTY960094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
