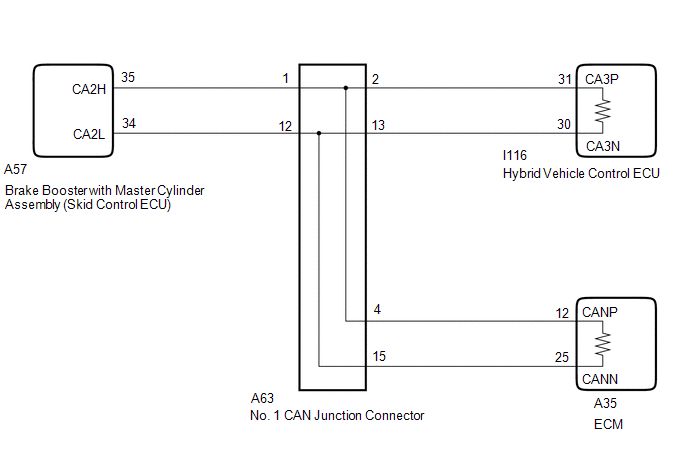

DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module; DTC U0293: Lost Communication with Hybrid Vehicle Control System [10/2014 - 09/2017]: Wiring Diagram

GTY509225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
