Engine Room Relay Block Assembly and Engine Room Junction Block Assembly No. 2 Inner Circuit

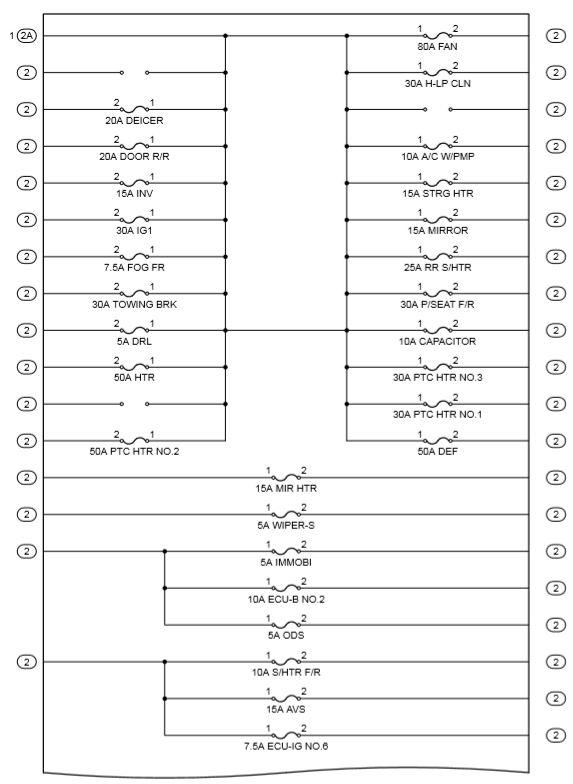

Fig 1: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

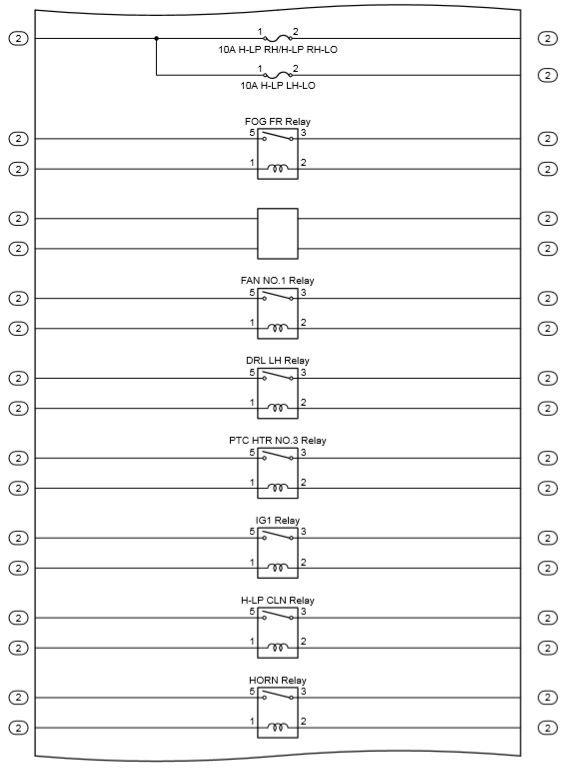

Fig 2: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
FOG FR Relay
FAN NO. 1 Relay
DRL LH Relay
PTC HTR NO. 3 Relay
IG1 Relay
H-LP CLN Relay
HORN Relay

Fig 3: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL RH Relay
S-HORN Relay
STRG HTR Relay
FAN NO. 2 Relay
H-LP RH Relay

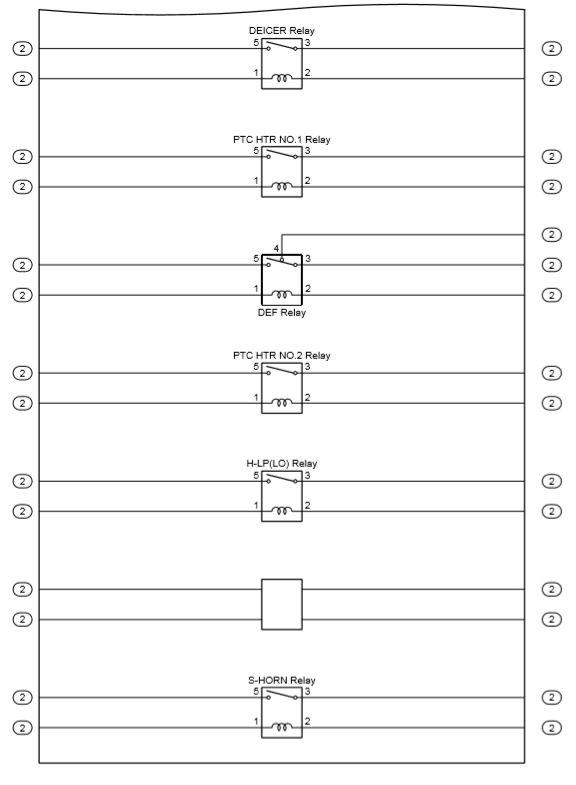

Fig 4: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DEICER Relay
PTC HTR NO. 1 Relay
DEF Relay
PTC HTR NO. 2 Relay
H-LP(LO) Relay
