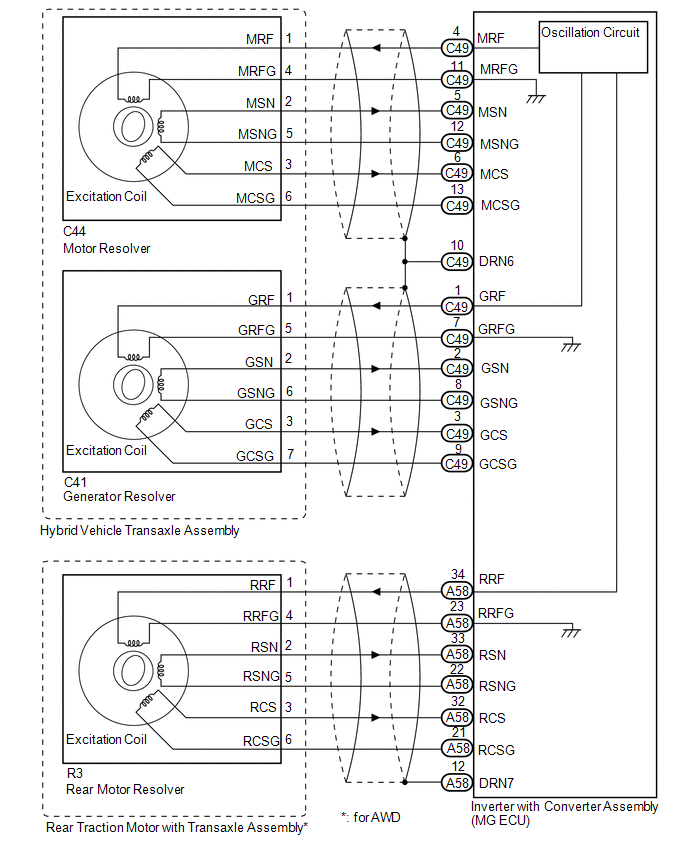

DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [10/2014 - 09/2016]: Wiring Diagram

GTY515239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
