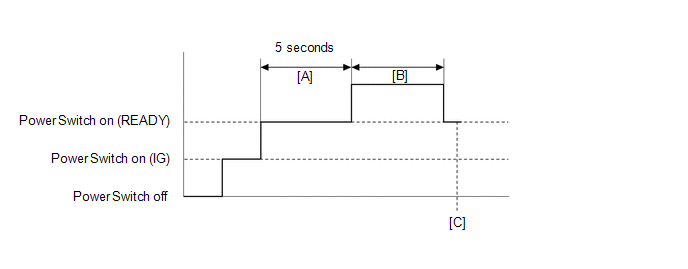

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for 30 seconds or more.
- Turn the power switch on (IG) and wait for 5 seconds or more.
- Turn the power switch on (READY) with the shift lever in P and wait for 5 seconds or more. [A]
- Drive the vehicle at 5 km/h (3 mph) or more for 5 seconds or more. [B]
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [C]
- Read the current DTCs.
HINT:
- If a current DTC is output, the system is malfunctioning.
- If current DTCs are not output, check for permanent DTCs.
- Check that the permanent DTCs are cleared.
- If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.
