System Diagram [09/2017 - 05/2019]

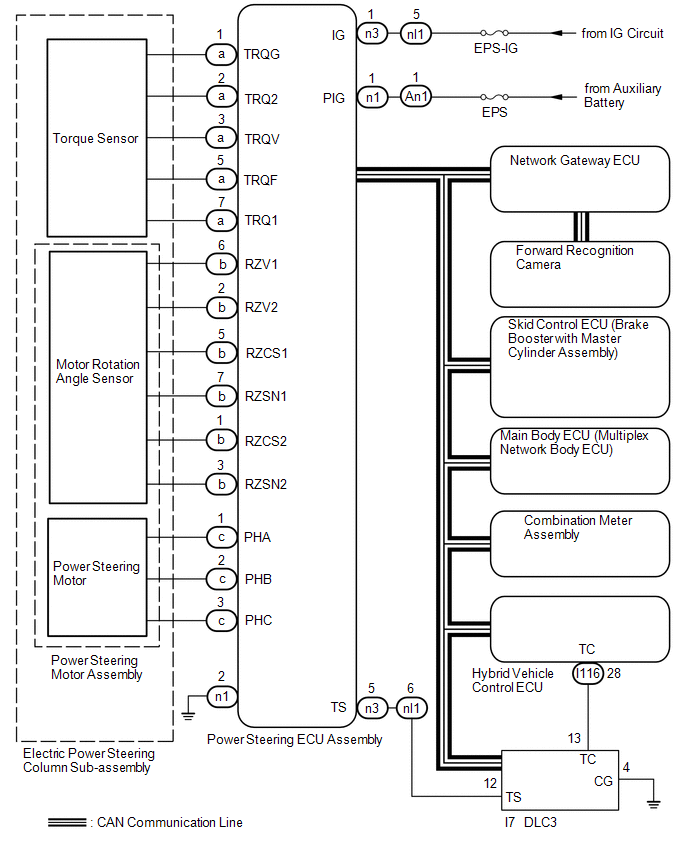

Fig 1: Power Steering System (For Manual Tilt And Manual Telescopic Steering Column) Wiring Diagram
GTY796493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
