One-touch Walk-in Function does not Operate [10/2015 - 11/2017]: Wiring Diagram

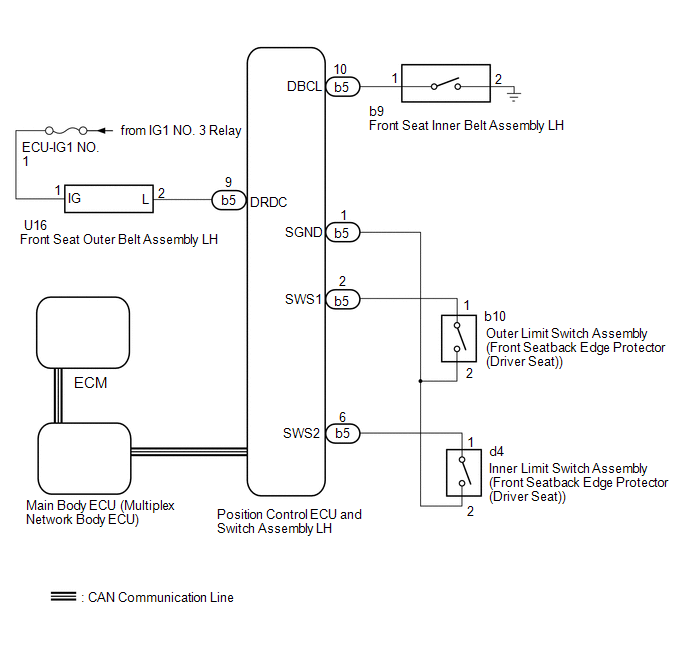

  1. for Driver Seat
    GTY504268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

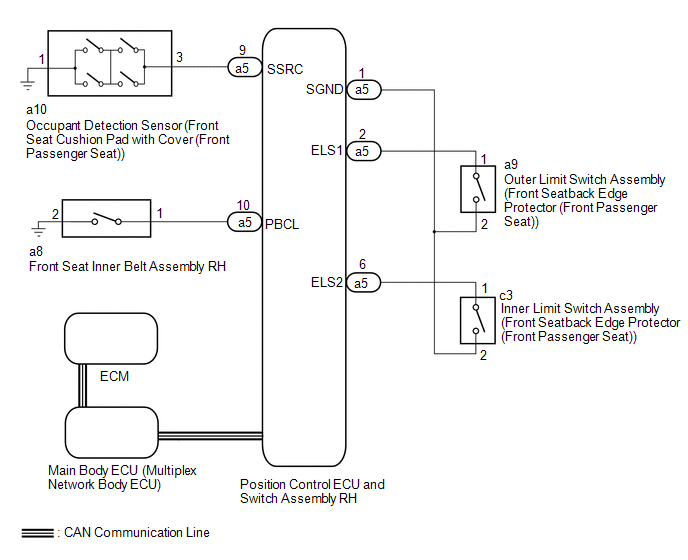

  2. for Front Passenger Seat
    GTY509181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
