Engine Room Relay Block Assembly and Engine Room Junction Block Assembly No. 2 Inner Circuit

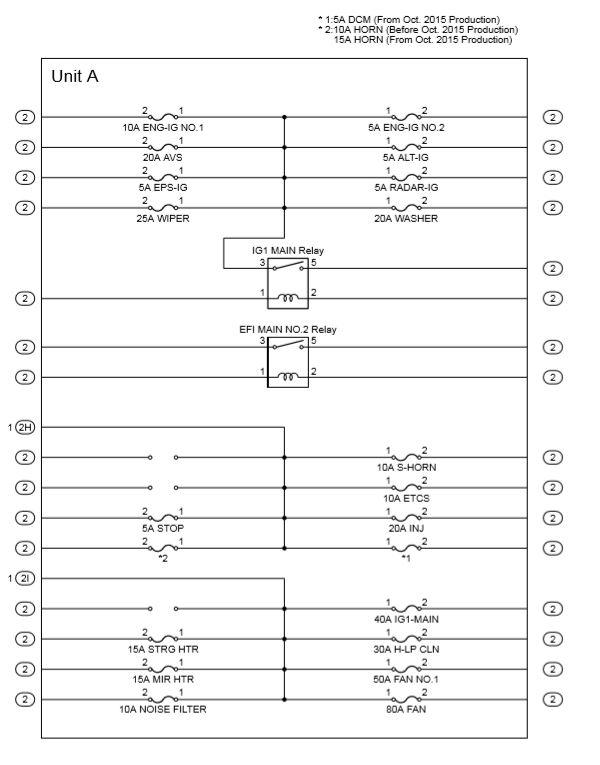

Fig 1: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram With Relays (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 MAIN Relay
EFI MAIN NO. 2 Relay

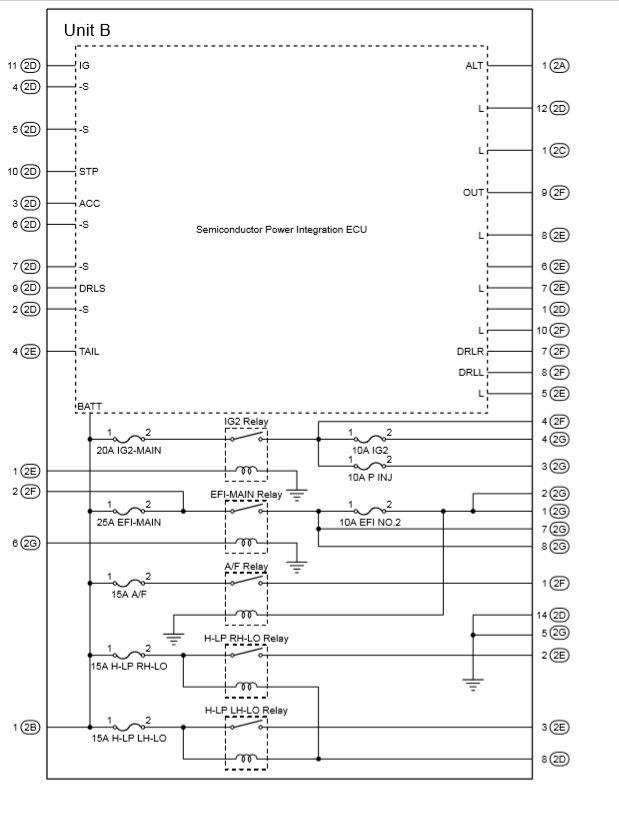

Fig 2: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram With Relays (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 Relay
EFI-MAIN Relay
A/F Relay
H-LP RH-LO Relay
H-LP LH LO Relay

Fig 3: Engine Room R/B And J/B Assembly No. 2 Circuit Diagram With Relays (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
FAN Relay
S-HORN Relay
ST NO. 1 Relay
HORN Relay
STRG HTR Relay
INJ Relay
WIPER Relay
INT Relay
