Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 2 - Left Engine Compartment: Notes

For additional information, refer to Figure.

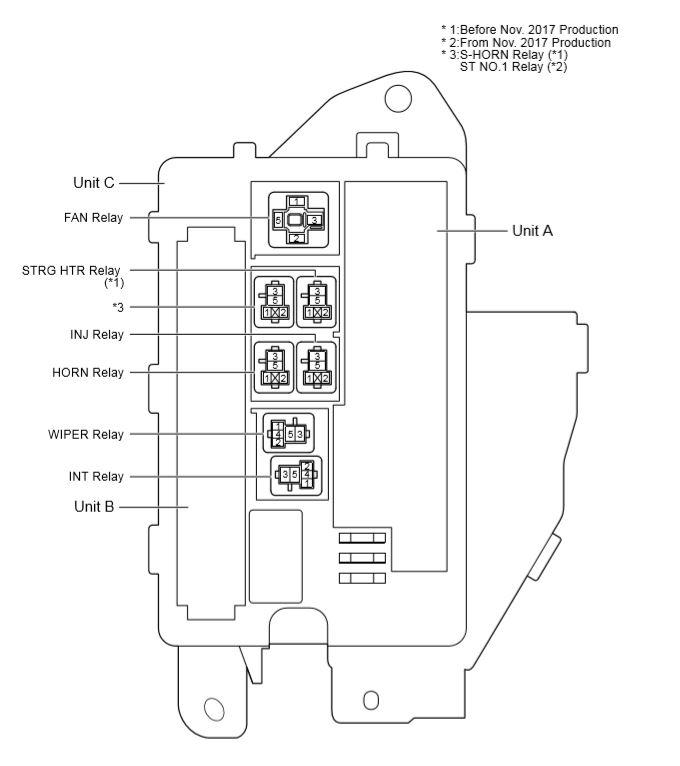

Fig 1: Engine Room R/B And J/B No. 2 Fuse & Relay Identification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
FAN Relay
STRG HTR Relay
INJ Relay
HORN Relay
WIPER Relay
INT Relay
S-HORN Relay
ST NO. 1 Relay

Engine Room R/B And J/B NO. 2 Fuse Identification Legend

FUSE
5A	ALT-IG
5A	DCM
5A	ENG-IG NO. 2
5A	EPS-IG
5A	RADAR-IG
5A	STOP
10A	EFI NO. 2
10A	ENG-IG NO. 1
10A	ETCS
10A	HORN
10A	IG2
10A	NOISE FILTER
10A	P INJ
10A	S-HORN
15A	A/F
15A	H-LP LH-LO
15	H-LP RH-LO
15A	HORN
15A	MIR HTR
15A	STRG HTR
20A	AVS
20A	IG2-MAIN
20A	INJ
20A	WASHER
25A	EFI-MAIN
25A	WIPER
30A	H-LP CLN
40A	IG1-MAIN
80A	FAN

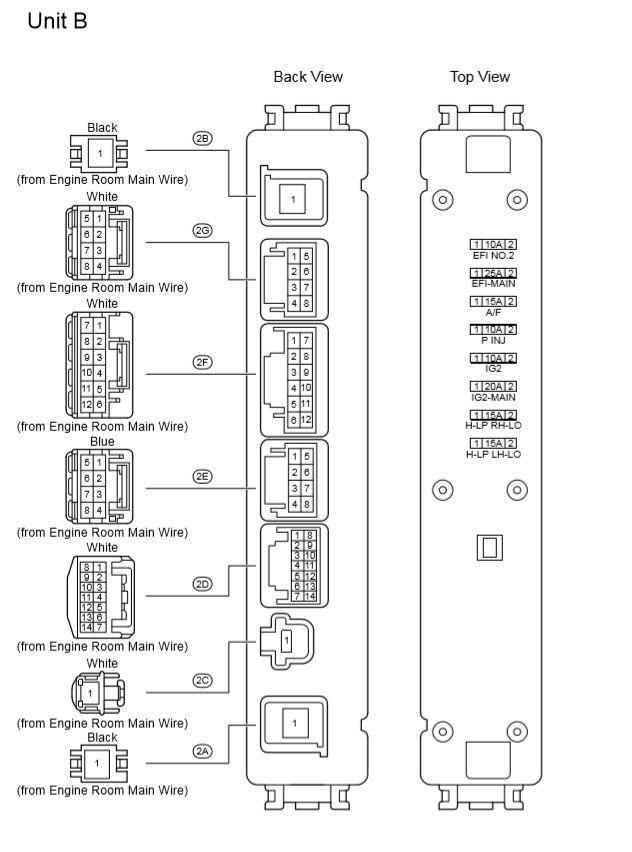

Fig 2: Engine Room R/B And Engine Room J/B Assembly No. 2 (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 MAIN Relay
EFI MAIN NO. 2 Relay

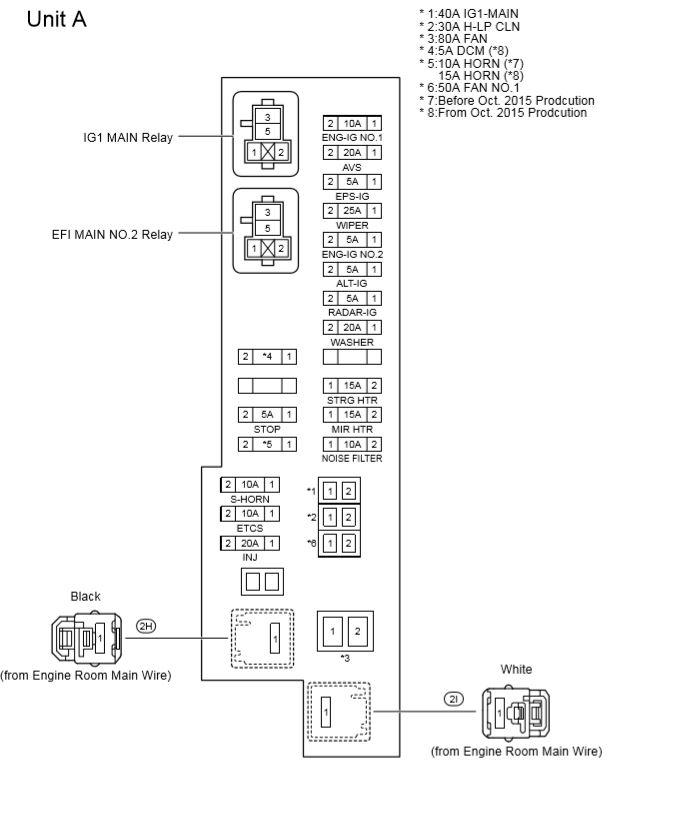

Fig 3: Engine Room R/B And Engine Room J/B Assembly No. 2 (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
