Pattern Select Switch Snow Mode Circuit [09/2014 - 11/2017]: Wiring Diagram

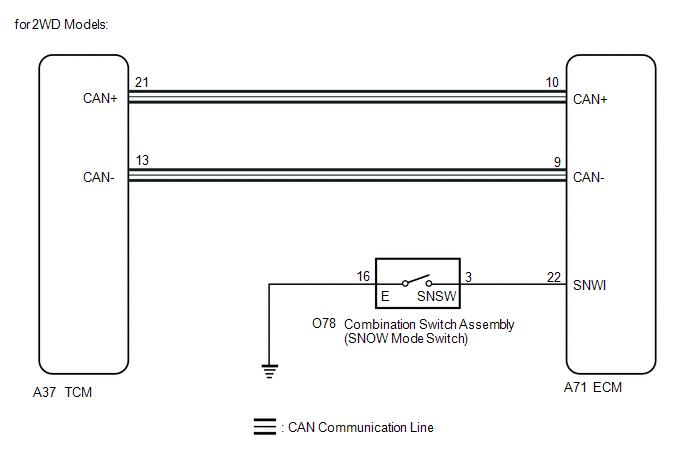

GTY519693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

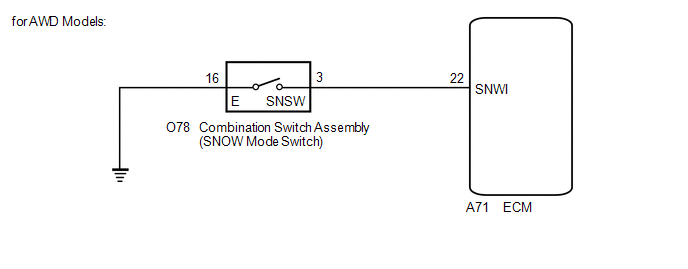

GTY513036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
