Drive Mode Select Switch Circuit [11/2017 - ]: Procedure
- CHECK THE PROBLEM SYMPTOMS
- Check each symptom by checking the suspected areas in the table below.
Result
Result Proceed to SPORT, SPORT S/S+ mode or NORMAL mode is abnormal. A ECO mode is abnormal. B
Result:
B
GO TO AIR CONDITIONING SYSTEM. Refer to ECO Switch Circuit [11/2017 - ]
Result:
A
See step 2
- Check each symptom by checking the suspected areas in the table below.
- CHECK CAN COMMUNICATION SYSTEM
- Check for DTCs.
Refer to DIAGNOSIS SYSTEM [11/2017 - 10/2018] , or refer to DIAGNOSIS SYSTEM [10/2018 - 11/2019] , or refer to DIAGNOSIS SYSTEM [11/2019 - 09/2020] , or refer to DIAGNOSIS SYSTEM [09/2020 - 10/2022] , or refer to DIAGNOSIS SYSTEM [10/2022 - 10/2023] , or refer to DIAGNOSIS SYSTEM [10/2023 - ]
Result
Result Proceed to CAN communication system DTCs are not output. A CAN communication system DTCs are output. B
Result:
B
GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2017 - 10/2018] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2018 - ]
Result:
A
See step 3
- Check for DTCs.
- CHECK HARNESS AND CONNECTOR (DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) - BODY GROUND)
- Turn the engine switch off.
- Disconnect the O78 drive mode select switch (combination switch assembly) connector.
*a Front view of wire harness connector
(to Drive mode select switch (combination switch assembly)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O78-16 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)
- Inspect drive mode select switch (combination switch assembly).
for A760H: Refer to INSPECTION [11/2017 - 09/2020] , or refer to INSPECTION [09/2020 - ]
for AA81E: Refer to INSPECTION [11/2017 - 09/2020] , or refer to INSPECTION [09/2020 - ]
OK
Drive mode select switch (combination switch assembly) is normal.
Result
Result Proceed to CAN communication system DTCs are not output. (for 2GR-FKS) A CAN communication system DTCs are not output. (for 8AR-FTS) B CAN communication system DTCs are output. C
Result:
B
See step 6
Result:
C
REPLACE COMBINATION SWITCH ASSEMBLY
for A760H: Refer to REMOVAL [09/2014 - ]
for AA81E: Refer to REMOVAL [09/2014 - ]
Result:
A
See step 5
- Inspect drive mode select switch (combination switch assembly).
- CHECK HARNESS AND CONNECTOR (DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) - ECM)
- Reconnect the O78 drive mode select switch (combination switch assembly) connector.
- Disconnect the A91 ECM connectors.

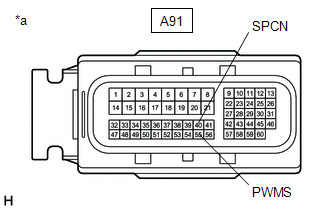

*a Front view of wire harness connector
(to ECM) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ ADAPTIVE VARIABLE SUSPENSION SYSTEMTester Connection Condition Specified Condition A91-55 (PWMS) - Body ground SPORT S/S+ mode switch being turned and held Below 50 Ω A91-55 (PWMS) - Body ground SPORT S/S+ mode switch not turned 10 kΩ or higher A91-40 (SPCN) - Body ground NORMAL/CUSTOM mode switch being pushed and held Below 50 Ω A91-40 (SPCN) - Body ground NORMAL/CUSTOM mode switch not pushed 10 kΩ or higher W/O ADAPTIVE VARIABLE SUSPENSION SYSTEMTester Connection Condition Specified Condition A91-55 (PWMS) - Body ground SPORT mode switch being turned and held Below 50 Ω A91-55 (PWMS) - Body ground SPORT mode switch not turned 10 kΩ or higher A91-40 (SPCN) - Body ground NORMAL mode switch being pushed and held Below 50 Ω A91-40 (SPCN) - Body ground NORMAL mode switch not pushed 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [11/2017 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- CHECK HARNESS AND CONNECTOR (DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) - ECM)
- Reconnect the O78 drive mode select switch (combination switch assembly) connector.
- Disconnect the A82 ECM connectors.

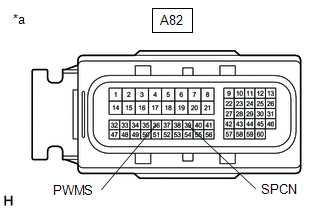

*a Front view of wire harness connector
(to ECM) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ ADAPTIVE VARIABLE SUSPENSION SYSTEMTester Connection Condition Specified Condition A82-36 (PWMS) - Body ground SPORT S/S+ mode switch being turned and held Below 50 Ω A82-36 (PWMS) - Body ground SPORT S/S+ mode switch not turned 10 kΩ or higher A82-39 (SPCN) - Body ground NORMAL/CUSTOM mode switch being pushed and held Below 50 Ω A82-39 (SPCN) - Body ground NORMAL/CUSTOM mode switch not pushed 10 kΩ or higher W/O ADAPTIVE VARIABLE SUSPENSION SYSTEMTester Connection Condition Specified Condition A82-36 (PWMS) - Body ground SPORT mode switch being turned and held Below 50 Ω A82-36 (PWMS) - Body ground SPORT mode switch not turned 10 kΩ or higher A82-39 (SPCN) - Body ground NORMAL mode switch being pushed and held Below 50 Ω A82-39 (SPCN) - Body ground NORMAL mode switch not pushed 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [10/2015 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
