Power Steering System
>>
System Diagram [10/2015 - 11/2017]
>>
System Diagram [10/2015 - 11/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

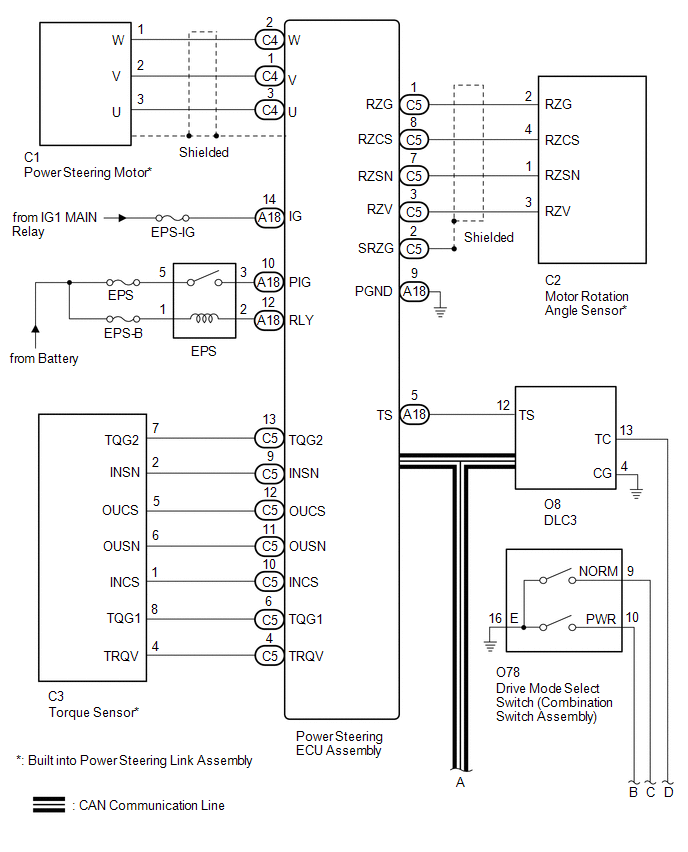

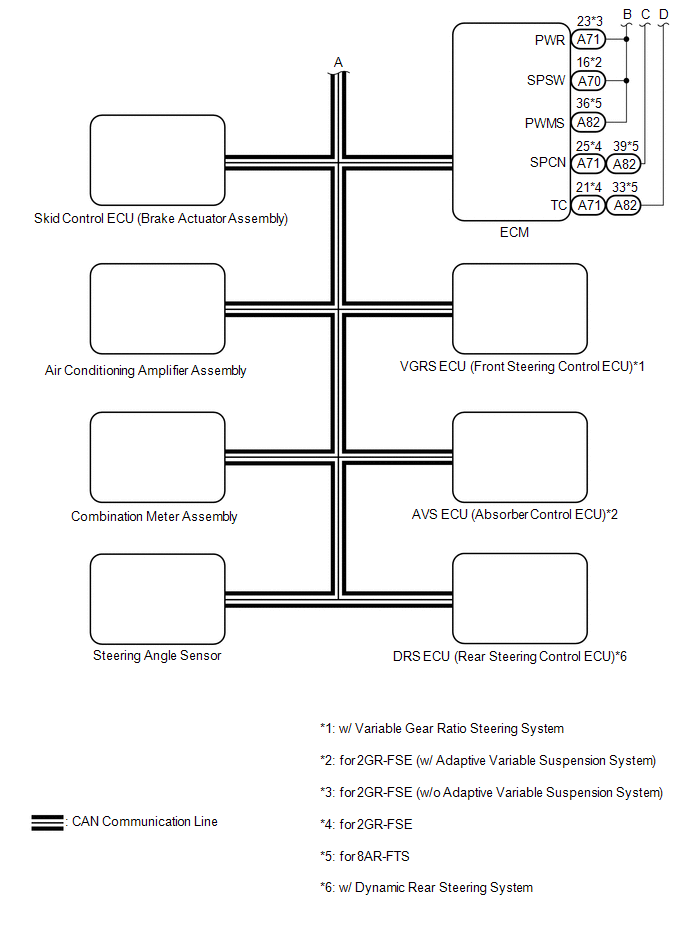

System Diagram [10/2015 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
