Variable Gear Ratio Steering System - Diagnostics - Introduction
>>
Variable Gear Ratio Steering System
>>

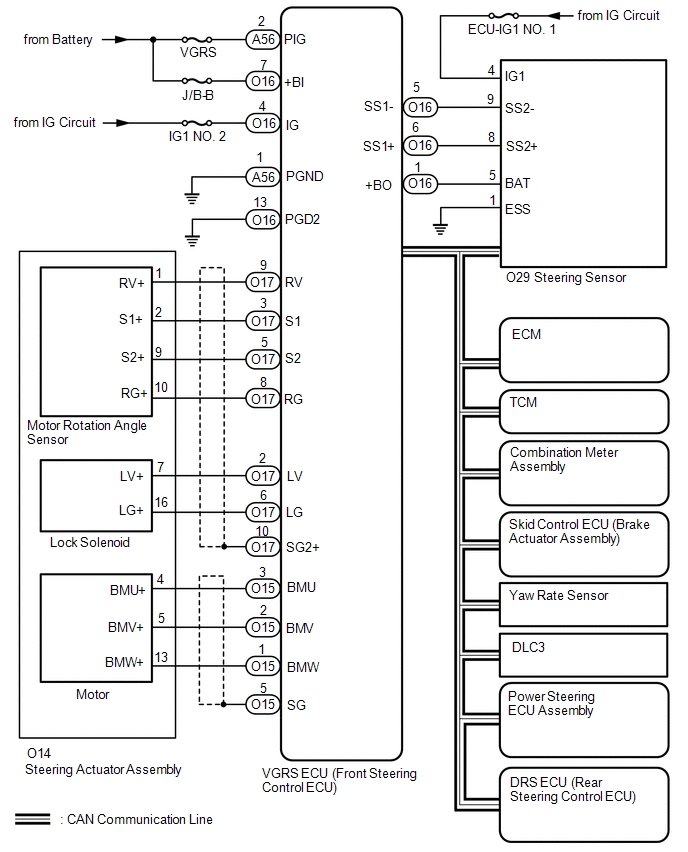

System Diagram [09/2014 - 11/2017]
>>
System Diagram [09/2014 - 11/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
