DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [09/2015 - 12/2017]: Wiring Diagram

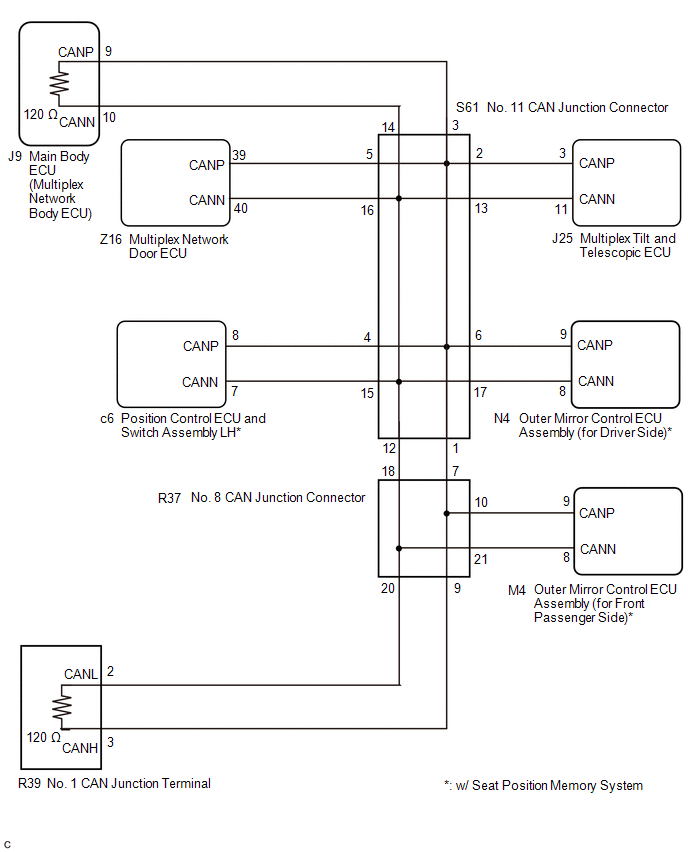

  1. GTY954819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
