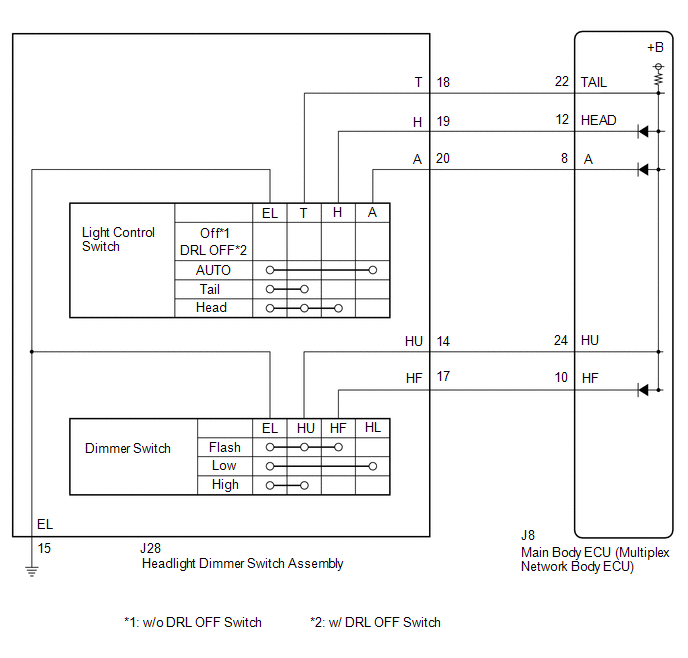

Headlight Dimmer Switch Circuit [08/2019 - 07/2020]: Wiring Diagram

GTY962641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
