Wiper System / Washer System - Diagnostic Codes & Circuit Tests
>>
Wiper And Washer System
>>
Wiper Motor Power Source Circuit [09/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

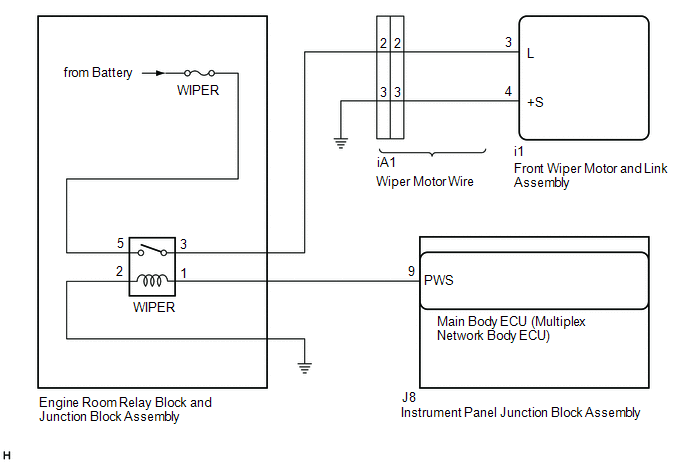

Wiper Motor Power Source Circuit [09/2015 - ]: Wiring Diagram
