Instrument Panel Junction Block Assembly - Instrument Panel Reinfocement: Notes

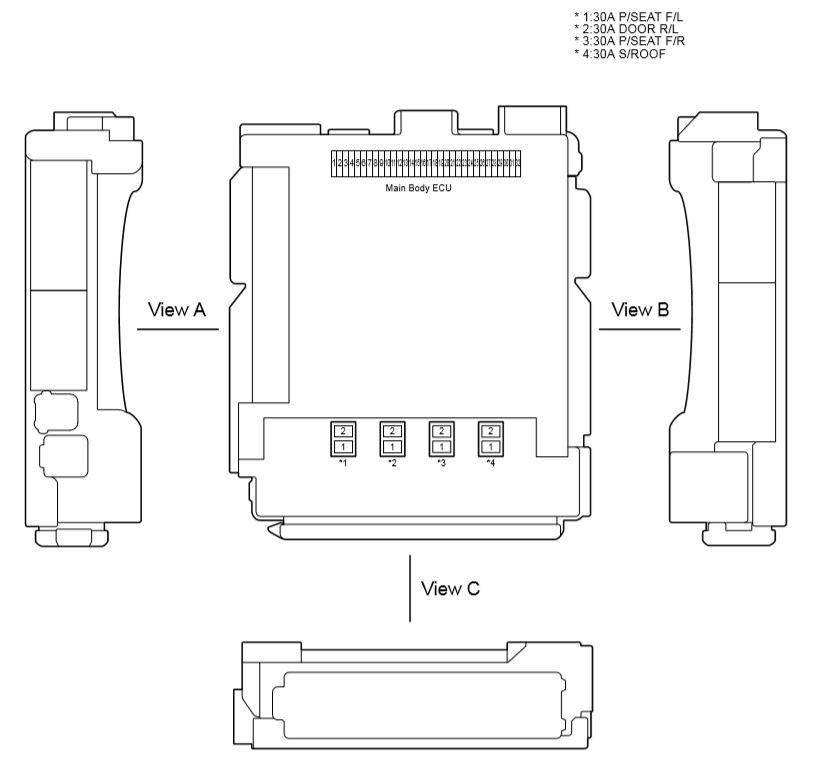

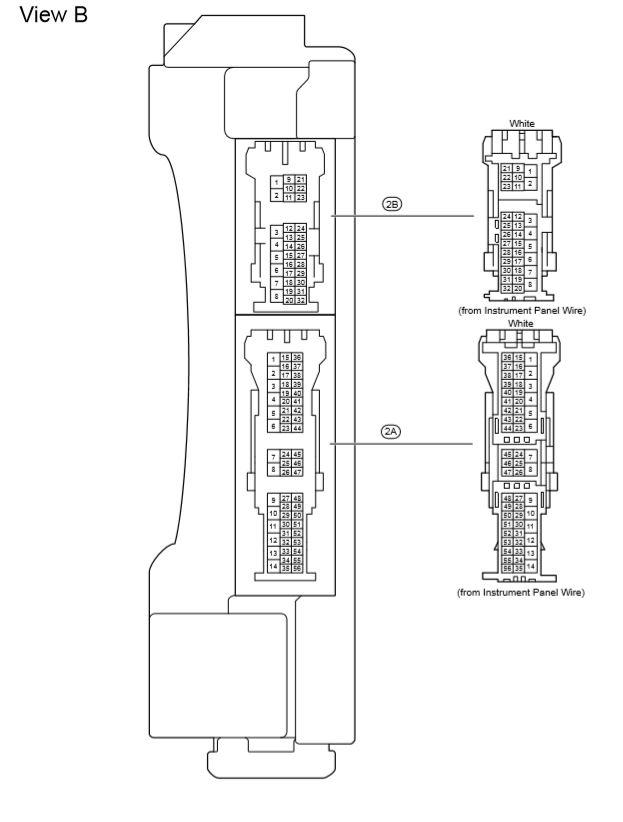

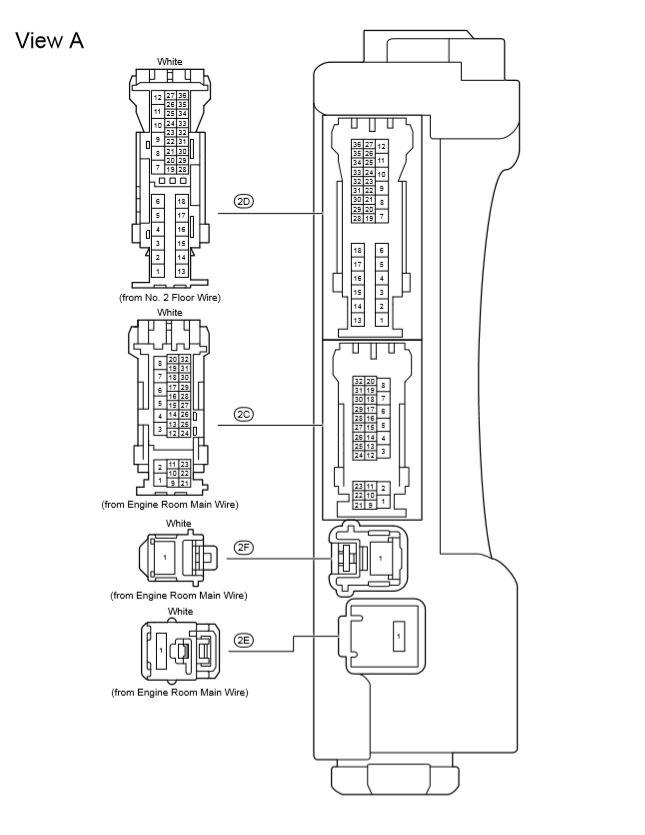

For additional information, refer to Figure.

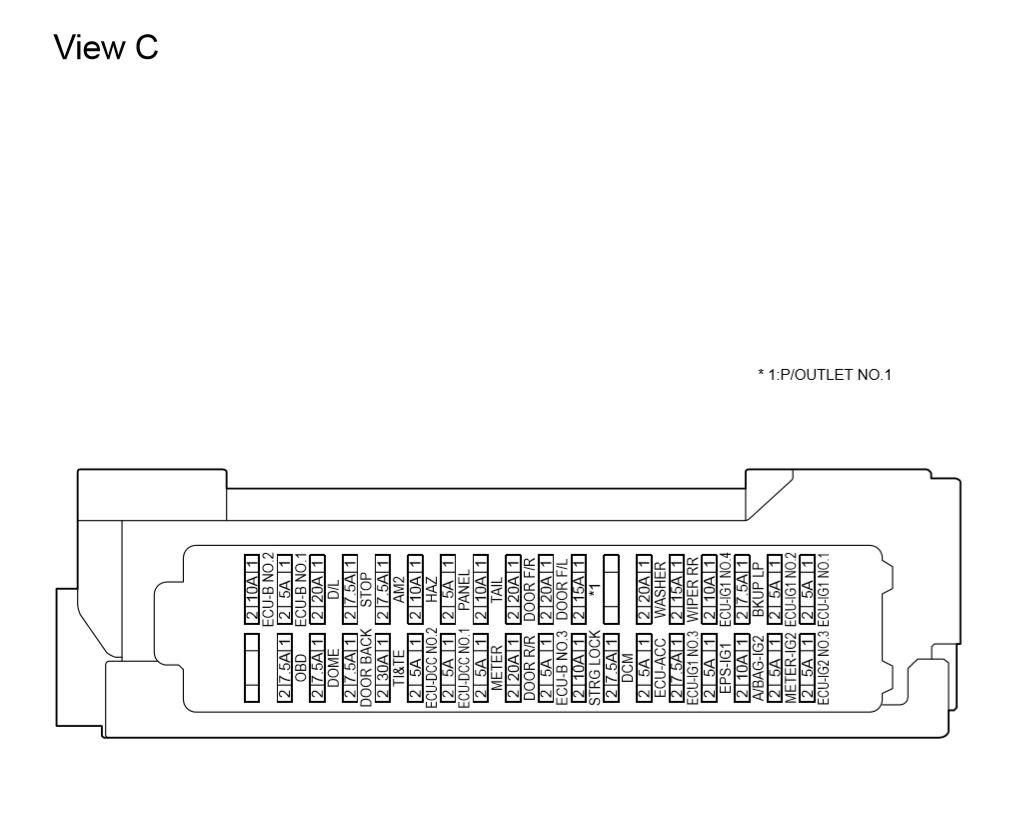

Instrument Panel J/B Fuse Identification Legend
| Fuse | |
|---|---|
| 5A | ECU-ACC |
| 5A | ECU-B NO. 1 |
| 5A | ECU-B NO. 3 |
| 5A | ECU-DCC NO. 1 |
| 5A | ECU-DCC NO. 2 |
| 5A | ECU-IG1 NO. 1 |
| 5A | ECU-IG1 NO. 2 |
| 5A | ECU-IG2 NO. 3 |
| 5A | EPS-IG1 |
| 5A | METER |
| 5A | METER-IG2 |
| 5A | PANEL |
| 7.5A | AM2 |
| 7.5A | BKUP LP |
| 7.5A | DCM |
| 7.5A | DOME |
| 7.5A | DOOR BACK |
| 7.5A | ECU-IG1 NO. 3 |
| 7.5A | OBD |
| 7.5A | STOP |
| 10A | A/BAG-IG2 |
| 10A | ECU-B N.2 |
| 10A | ECU-IG1 NO. 4 |
| 10A | HAZ |
| 10A | STRG LOCK |
| 10A | TAIL |
| 15A | P/OUTLET NO. 1 |
| 15A | WIPER RR |
| 20A | D/L |
| 20A | DOOR F/L |
| 20A | DOOR F/R |
| 20A | DOOR R/R |
| 20A | WASHER |
| 30A | DOOR R/L |
| 30A | P/SETA F/L |
| 30A | P/SEAT F/R |
| 30A | S/ROOF |
| 30A | TI&TE |
