Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Inner Circuit

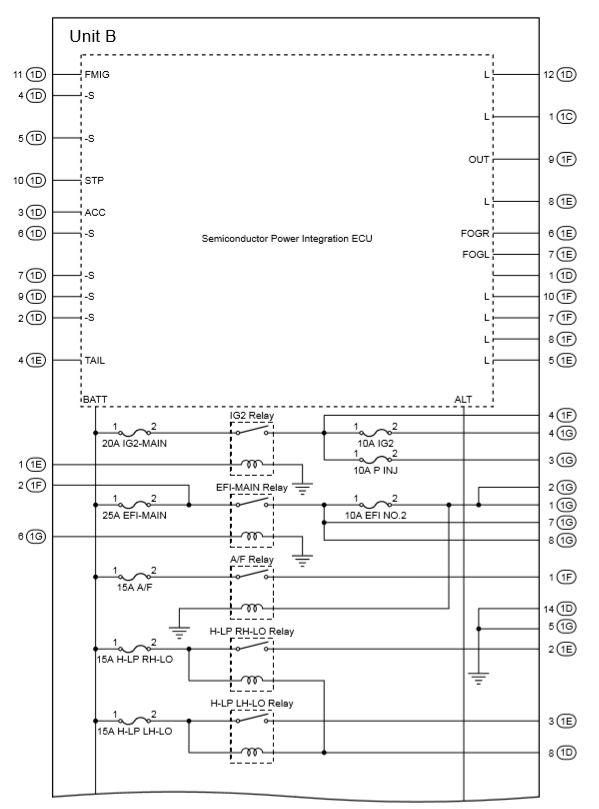

Fig 1: Engine Room R/B And J/B Assembly Circuit Diagram With Relays (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 Relay
EFI-MAIN Relay
A/F Relay
H-LP RH-LO Relay
H-LP LH-LO Relay

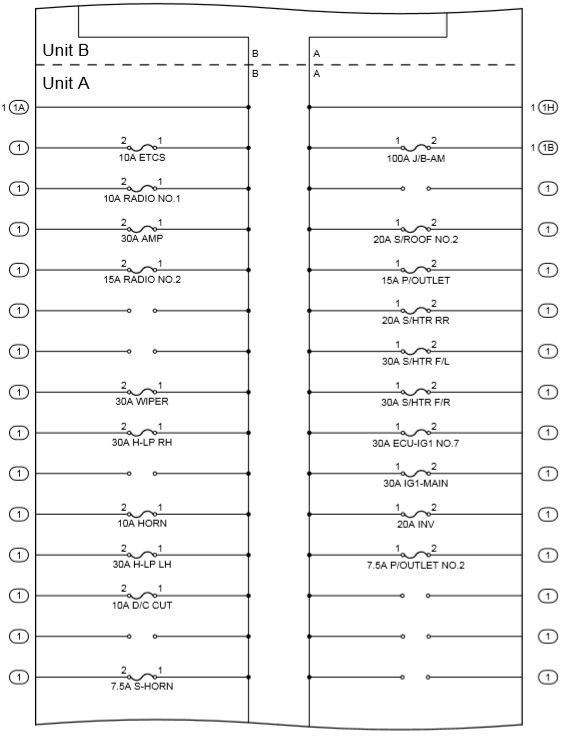

Fig 2: Engine Room R/B And J/B Assembly Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
S-Horn Relay
A/F Relay

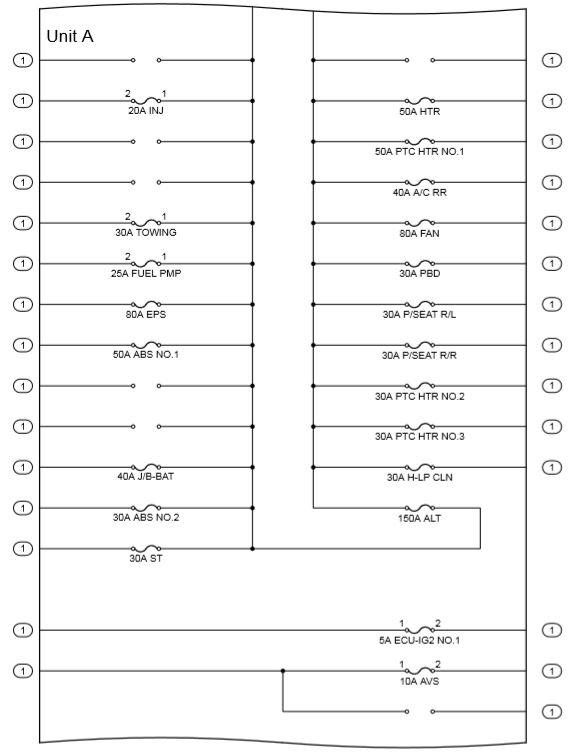

Fig 3: Engine Room R/B And J/B Assembly Circuit Diagram With Relays (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

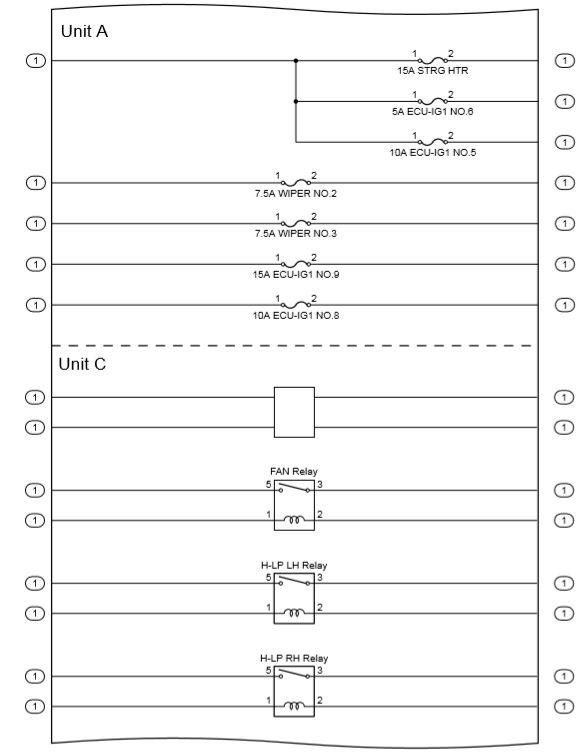

Fig 4: Engine Room R/B And J/B Assembly Circuit Diagram With Relays (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
FAN Relay
H-LP LH Relay
H-LP RH Relay

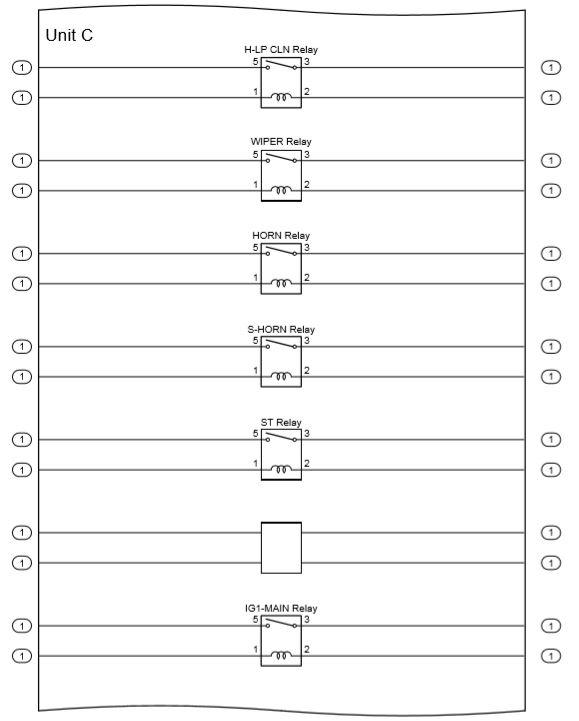

Fig 5: Engine Room R/B And J/B Assembly Circuit Diagram With Relays (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
H-LP CLN Relay
WIPER Relay
HORN Relay
S-HORN Relay
ST Relay
IG1-MAIN Relay

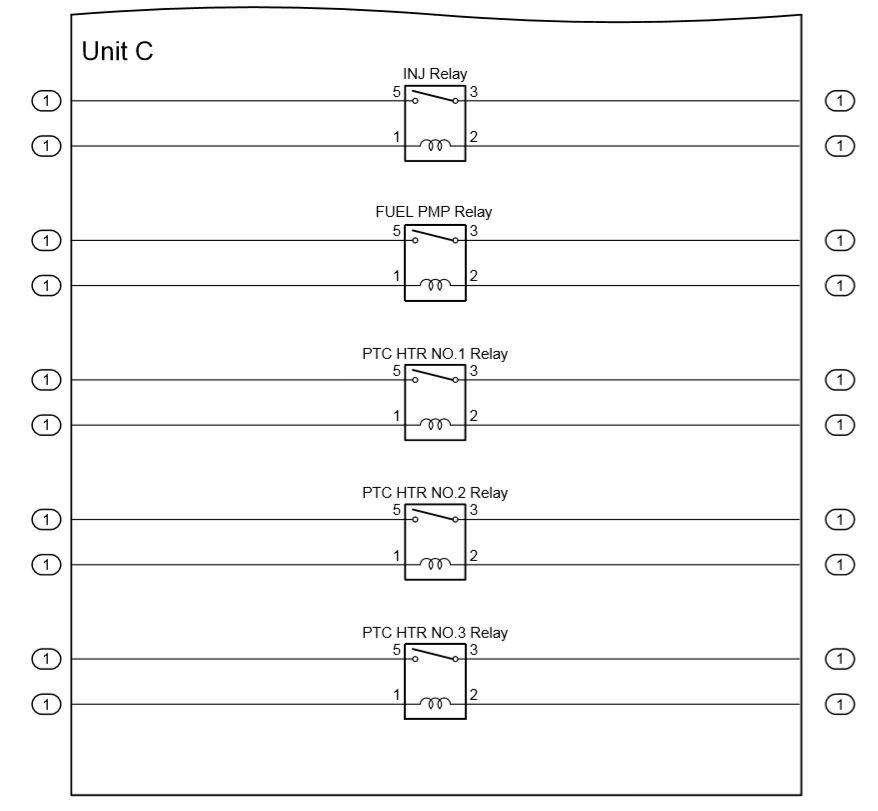

Fig 6: Engine Room R/B And J/B Assembly Circuit Diagram With Relays (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
INJ Relay
FUEL PMP Relay
PTC HTR NO. 1 Relay
PTC HTR NO. 2 Relay
PTC HTR NO. 3 Relay
