Back-up Light Circuit [08/2019 - ]: Procedure
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Result
Result Proceed to Hybrid control system DTCs are not output A Hybrid control system DTCs are output B
Result:
B
GO TO HYBRID CONTROL SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - ]
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BODY GROUND)
- Disconnect the 2B instrument panel junction block assembly connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2B-3 - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
- Disconnect the A40 hybrid vehicle control ECU assembly connector.
- Disconnect the 2C instrument panel junction block assembly connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A40-2 (BL) - 2C-19 Always Below 1 Ω A40-2 (BL) or 2C-19 - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4

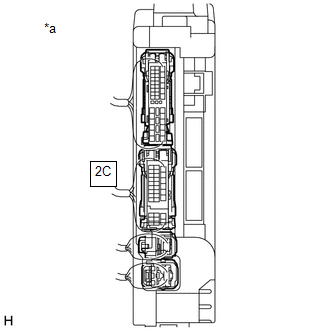

- CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY (OUTPUT VOLTAGE)
*a Component with harness connected
(Instrument Panel Junction Block Assembly)- Connect the A40 hybrid vehicle control ECU assembly connector.
- Connect the 2B and 2C instrument panel junction block assembly connectors.
- Measure the voltage according to the value (s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 2C-19 - Body ground Power switch off, reverse (R) not selected Below 1 V 2C-19 - Body ground Power switch on (IG), reverse (R) selected 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to REMOVAL [08/2019 - ]
Result:
OK
See step 5

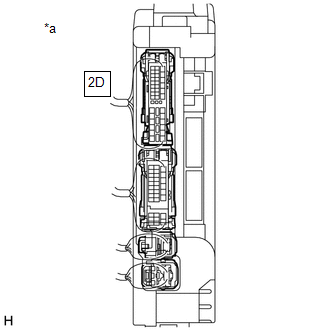

- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (OUTPUT VOLTAGE)
*a Component with harness connected
(Instrument Panel Junction Block Assembly)- Measure the voltage according to the value (s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 2D-10 - Body ground Power switch off, reverse (R) not selected Below 1 V 2D-10 - Body ground Power switch on (IG), reverse (R) selected 11 to 14 V Result
Proceed to OK NG
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to REMOVAL [08/2019 - ]
- Measure the voltage according to the value (s) in the table below.
