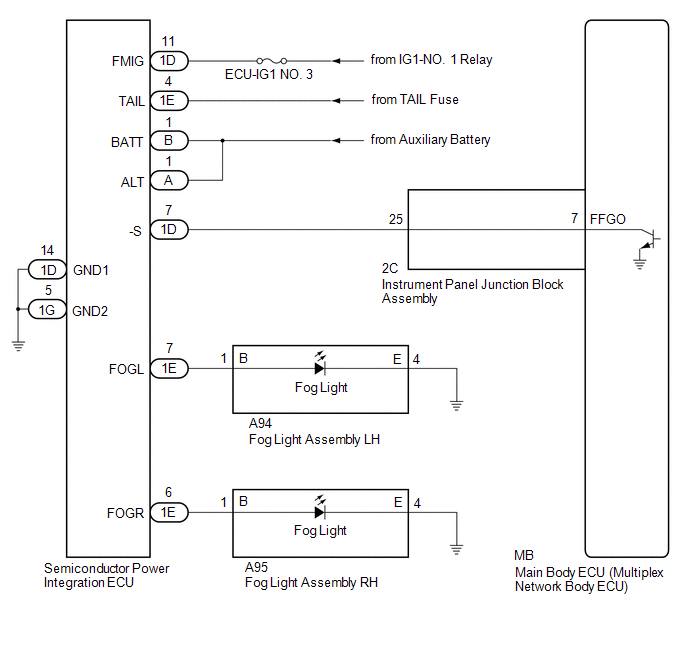

Front Fog Light Circuit [08/2019 - ]: Wiring Diagram

GTY961312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
