Taillight Relay Circuit [08/2019 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Perform the Active Test according to the display on the Techstream.

   Body Electrical > Main Body > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Taillight Relay	Taillight relay	OFF or ON	-

   Body Electrical > Main Body > Active Test

   Tester Display
   Taillight Relay

   OK

   Taillights illuminate.

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2019 - ]

Result:

NG

See step  2

1. Disconnect the 2E instrument panel junction block assembly connector.
2. Measure the voltage according to the value (s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2E-1 - Body ground	Power switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

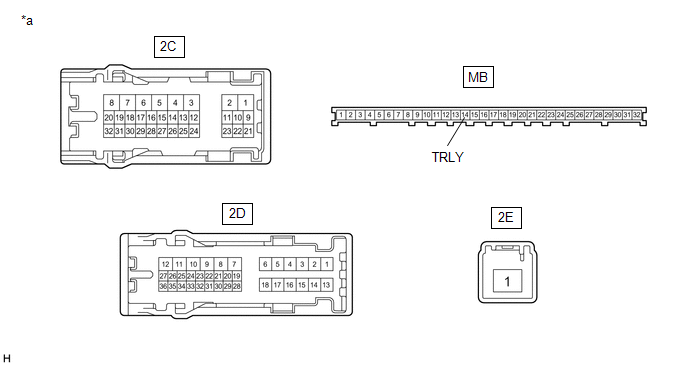

1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [08/2019 - ]

2. Connect a positive (+) lead from the auxiliary battery to terminal 2E-1.
3. Connect a negative (-) lead from the auxiliary battery to terminal MB-14 (TRLY).
4. Measure the voltage according to the value (s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2C-32 - Auxiliary battery negative (-) terminal	Always	11 to 14 V
   2D-30 - Auxiliary battery negative (-) terminal	Always	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [08/2019 - ]

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [08/2019 - ]
