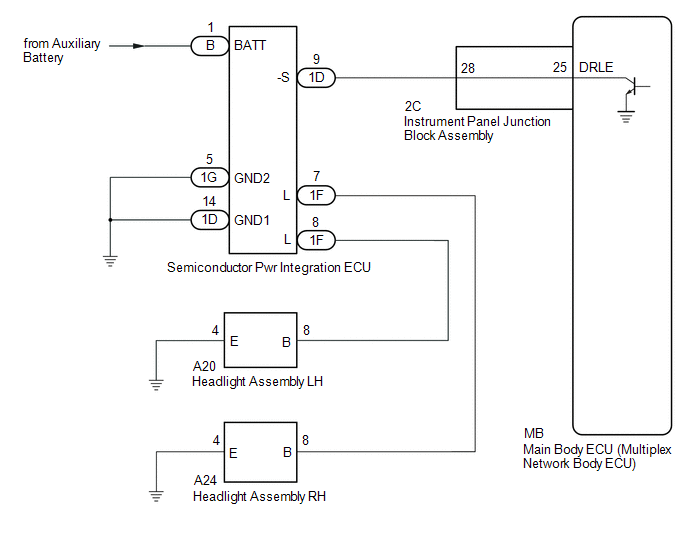

Daytime Running Light Relay Circuit [10/2015 - 08/2019]: Wiring Diagram

GTY661445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
