Installation [07/2015 - ]: Procedure

INSTALL RADIATOR ASSEMBLY

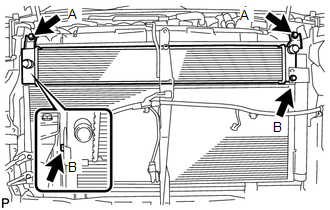

Install the radiator assembly with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt A

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

Bolt B

Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

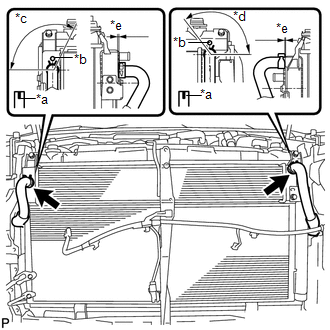

Connect the 2 water hoses to the radiator assembly.

TEXT IN ILLUSTRATION

NOTE:

Make sure that the clip is positioned as shown in the illustration.
Make sure to align the alignment marks of the hoses with the ribs of the radiator assembly.
Do not remove the pieces of cloth or plastic bags from the pipes and disconnected hoses until installation.

INSTALL RADIATOR SIDE DEFLECTOR RH
1. Engage the 3 claws to install the radiator side deflector RH.
INSTALL UPPER RADIATOR SUPPORT
Refer to PROCEDURE - Step 2
INSTALL HOOD LOCK ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL RADIATOR RESERVE TANK ASSEMBLY
Refer to PROCEDURE - Step 7
INSTALL NO. 5 INVERTER BRACKET
See step 26
INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 65
INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY (w/o Side Marker Light)
Refer to PROCEDURE - Step 1
INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY (w/ Side Marker Light)
Refer to PROCEDURE - Step 2
INSTALL NO. 2 FRONT BUMPER SUPPORT SPACER SUB-ASSEMBLY (w/ Side Marker Light)
Refer to PROCEDURE - Step 3
INSTALL FRONT BUMPER ENERGY ABSORBER
Refer to PROCEDURE - Step 4
INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION [07/2015 - ]
ADD COOLANT (for Inverter)
See step 2
INSPECT FOR COOLANT LEAK (for Inverter)
See step 1
