All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate (07/2015 -): Procedure

1. Check for DTCs (Refer to DTC CHECK / CLEAR (07/2015 -) ).

   OK

   DTCs are not output.

Result:  NG

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART

(Refer to DIAGNOSTIC TROUBLE CODE CHART (07/2015 -) )

Result:  OK

OK

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Auto Entry Cancel SW	Entry cancel function setting / OFF or ON	Mode status displayed ON: Smart access system with push-button start canceled OFF: Smart access system with push-button start not canceled	The default setting for the entry cancel function is OFF. If the customer requests that the smart access system with push-button start functions (locking and unlocking the doors while carrying the electrical key transmitter sub-assembly, etc.) be canceled, the setting can be changed through the customize function (Refer to CUSTOMIZE PARAMETERS (07/2015 -) ).

   HINT:

   If the Data List cannot be read, check the value by performing manual operation of the customize function (Refer to CUSTOMIZE PARAMETERS (07/2015 -) ).

   Result

   Result	Proceed to
   Entry door lock function cancel is OFF	A
   Entry door lock function cancel is ON	B

Result:  B

B

PERFORM CUSTOMIZE SETTING

(Refer to CUSTOMIZE PARAMETERS (07/2015 -) )

Result:  A

A

See step  3

1. Move the electrical key transmitter sub-assembly as described below and perform the operation inspection (Refer to OPERATION CHECK (07/2015 -) ).

   HINT:

   • When the electrical key transmitter sub-assembly is brought near the front door outside handle assembly (for driver door) or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • The transmitted waves of the wireless function and entry function are the same, but the wave logic is different. As a result, it is possible that only the wireless function or only the entry function is affected by wave interference.

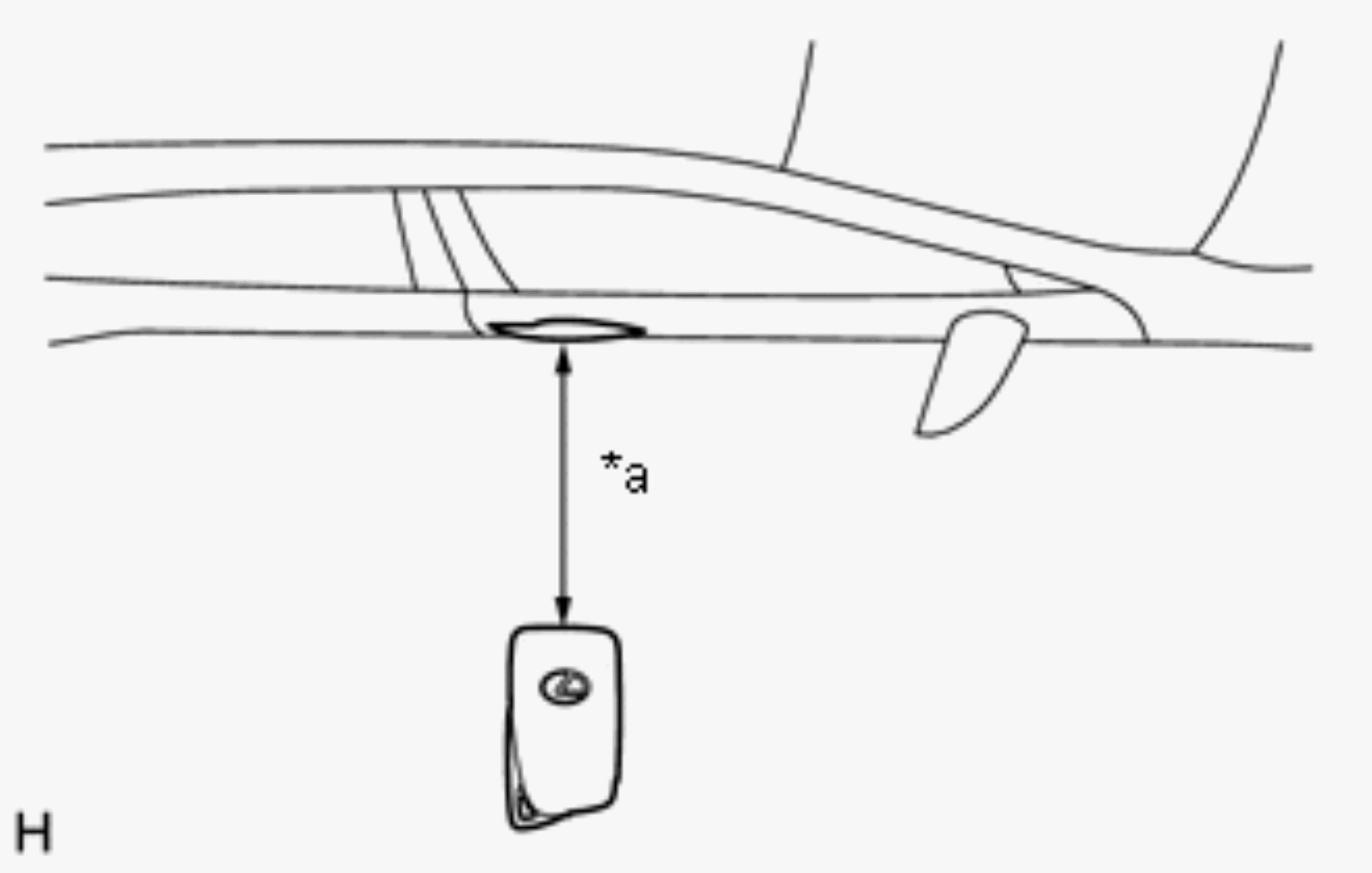

   1. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for driver door) and perform a driver door entry lock and unlock operation check.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      NOTE:

      Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.657 ft.) of the door handle.

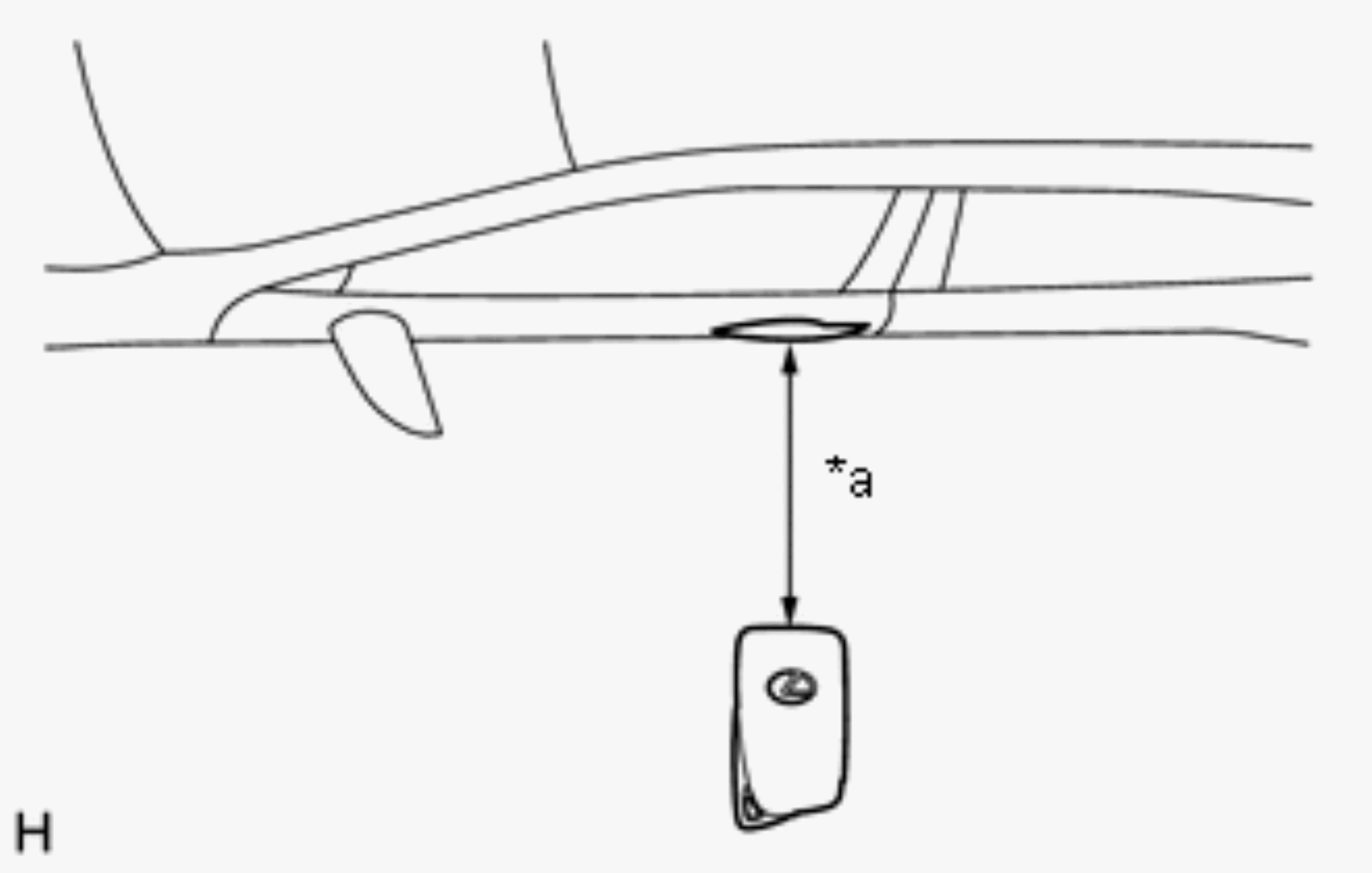

   2. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for front passenger door) and perform a front passenger door entry lock and unlock operation check.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      NOTE:

      Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.657 ft.) of the door handle.

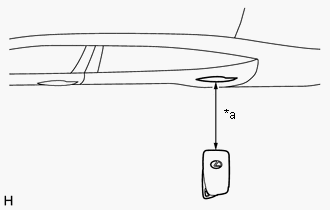

   3. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the rear door outside handle assembly LH (for rear door LH) and perform a rear door entry lock and unlock operation check.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      NOTE:

      Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.657 ft.) of the door handle.

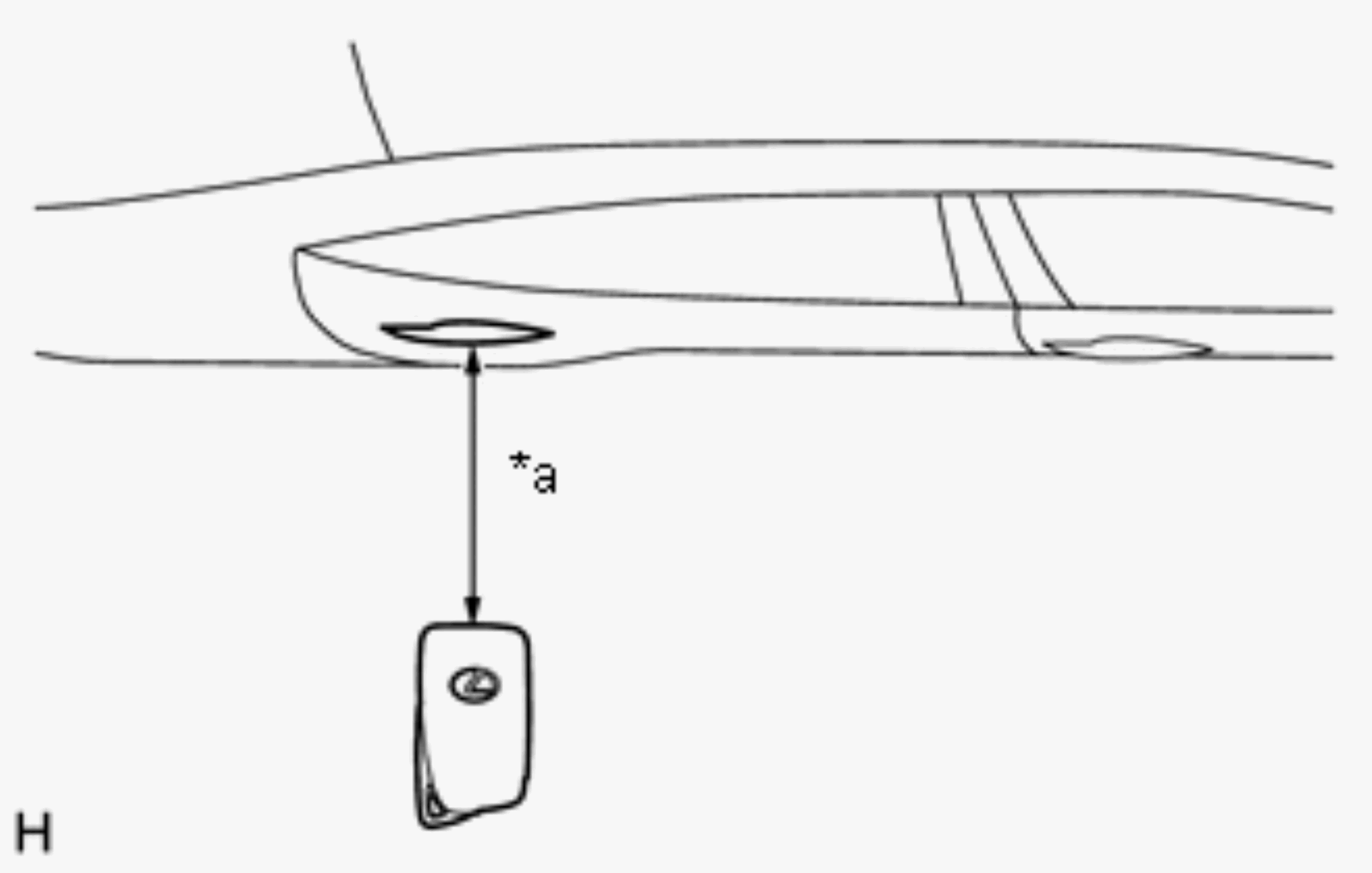

   4. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the rear door outside handle assembly RH (for rear door RH) and perform a rear door entry lock and unlock operation check.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      NOTE:

      Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.657 ft.) of the door handle.

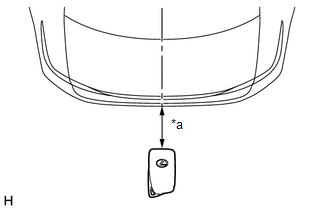

   5. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage) and perform a luggage compartment door open function check.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      NOTE:

      If the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the rear bumper, communication may not be possible.

      HINT:

      • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
      • If wave interference seems to be the likely cause of the problem, ask the customer if the problem occurs in specific locations.
      • Move the vehicle to a different location, perform the following procedure and check if the symptoms can be reproduced.
      • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

      Result

      Result	Proceed to
      All operation checks fail	A
      All operation checks are normal	B
      Some operation checks are normal	C

Result:  B

B

AFFECTED BY WAVE INTERFERENCE

Result:  C

C

GO TO OTHER PROBLEM (PROCEED TO PROBLEM SYMPTOMS TABLE FOR EACH DOOR)

(Refer to PROBLEM SYMPTOMS TABLE (07/2015 -) )

Result:  A

A

See step  4

1. Check the following antennas in key diagnostic mode (Refer to OPERATION CHECK (07/2015 -) ).
2. Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.

   HINT:

   If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

   1. Check the electrical key antenna (for driver door):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for driver door), check that the wireless door lock buzzer sounds.

   2. Check the electrical key antenna (for front passenger door):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for front passenger door), check that the wireless door lock buzzer sounds.

   3. Check the electrical key antenna (for rear door LH):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the rear door outside handle assembly (for rear door LH), check that the wireless door lock buzzer sounds.

   4. Check the electrical key antenna (for rear door RH):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the rear door outside handle assembly (for rear door RH), check that the wireless door lock buzzer sounds.

   5. Check the electrical key antenna (outside luggage):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage), check that the wireless door lock buzzer sounds.

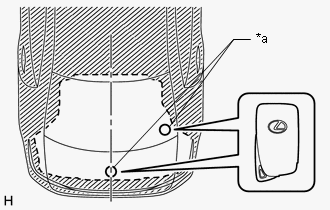

   6. Check the NO. 1 indoor electrical key antenna assembly (front floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   7. Check the NO. 1 indoor electrical key antenna assembly (rear floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   8. Check the NO. 1 indoor electrical key antenna assembly (inside luggage compartment):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   OK

   Wireless door lock buzzer sounds.

   Result

   Result	Proceed to
   All diagnostic mode inspections fail	A
   Some diagnostic mode inspections fail (door)	B
   Some diagnostic mode inspections fail (interior)	C
   Some diagnostic mode inspections fail (luggage compartment door)	D
   All diagnostic mode inspections are normal	E

Result:  B

B

GO TO OTHER PROBLEM (PROCEED TO PROBLEM SYMPTOM TABLE FOR EACH DOOR)

(Refer to PROBLEM SYMPTOMS TABLE (07/2015 -) )

Result:  C

C

GO TO OTHER PROBLEM

(Refer to Room Oscillator does not Recognize Key (07/2015 -) )

Result:  D

D

GO TO OTHER PROBLEM

(Refer to Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment (07/2015 -) )

Result:  E

E

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(Refer to REMOVAL (07/2015 -) )

Result:  A

A

See step  5

1. Check if there is another electrical key transmitter sub-assembly available that is already registered to the vehicle.

   Result

   Result	Proceed to
   Another registered electrical key transmitter sub-assembly is not available	A
   Another registered electrical key transmitter sub-assembly is available	B

Result:  B

B

See step  7

Result:  A

A

See step  6

1. Register a new electrical key transmitter sub-assembly (Refer to REGISTRATION (07/2015 -) ).

Result:  NEXT

NEXT

See step  7

1. Check the operation of the entry lock function (Refer to OPERATION CHECK (07/2015 -) ).

   OK

   Entry lock function operates normally.

Result:  OK

OK

END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY WAS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(Refer to REMOVAL (07/2015 -) )
