DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit (07/2015 -): Wiring Diagram

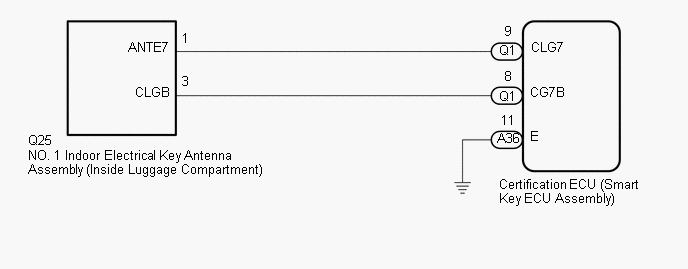

Fig 1: Key Antenna And Certification ECU Wiring Diagram
GTY671559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
