Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment (07/2015 -): Wiring Diagram

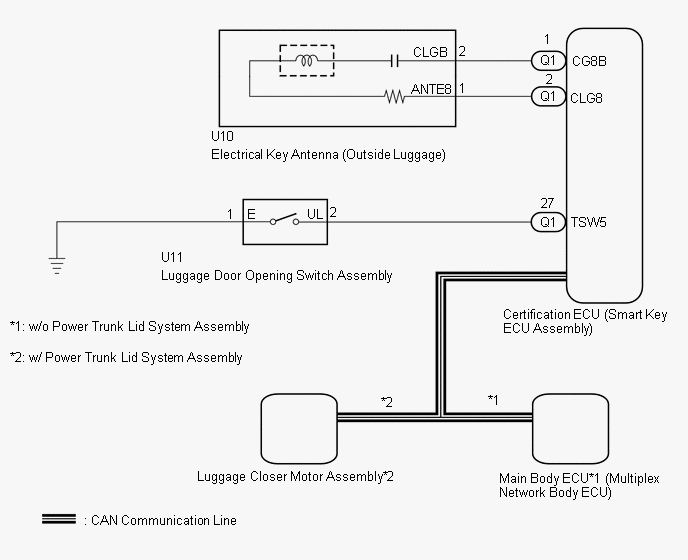

Fig 1: Outside Luggage Electrical Key Circuit Diagram
