New Key cannot be Registered (07/2015 -): Wiring Diagram

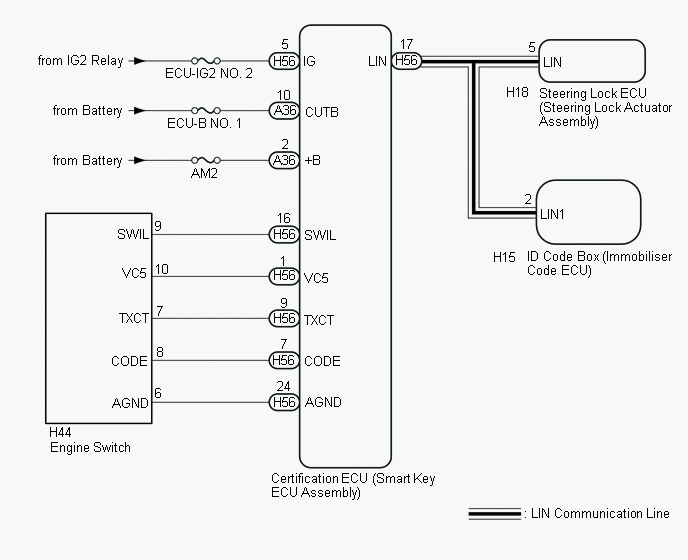

Fig 1: immobilizer System Wiring Diagram
GTY637477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
