DTC B2285: Steering Lock Position Signal Circuit Malfunction (07/2015 -): Wiring Diagram

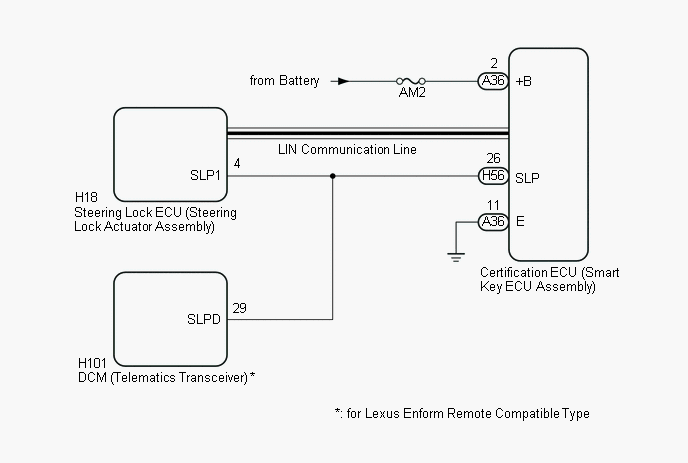

Fig 1: Smart Access System Wiring Harness
GTY651246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
