AFS ECU Communication Stop Mode (07/2015 -): Wiring Diagram

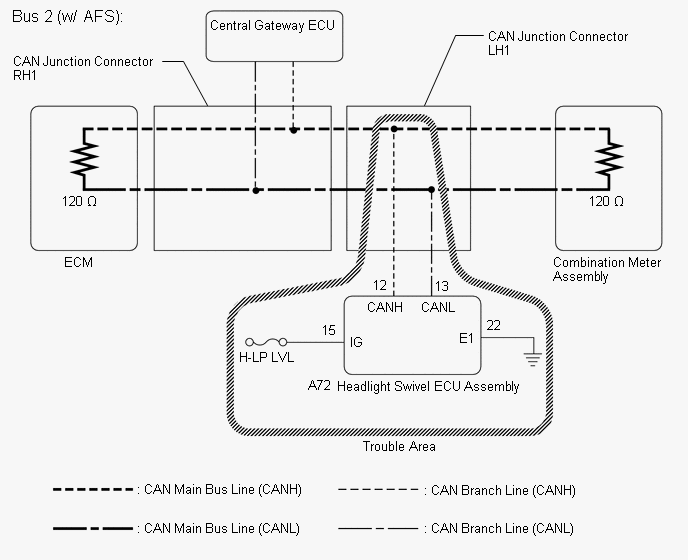

Fig 1: Automatic Headlight Beam Level Control System Wiring Diagram (1 of 2)
GTY631112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

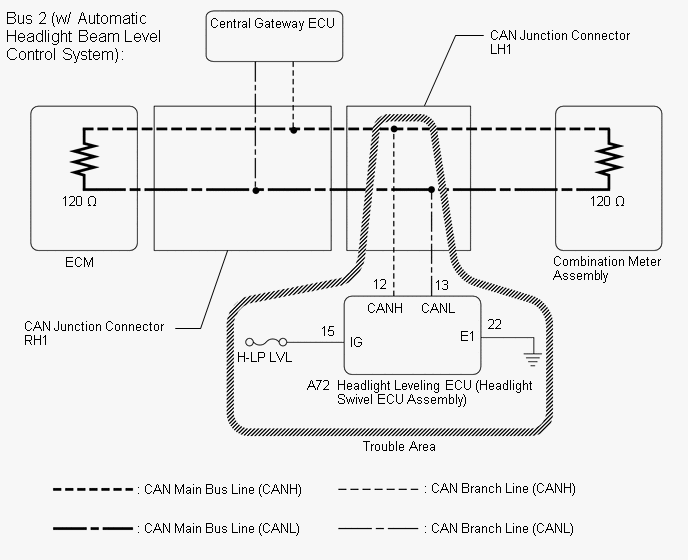

Fig 2: Automatic Headlight Beam Level Control System Wiring Diagram (2 of 2)
GTY631103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
