Front Camera Module Communication Stop Mode (07/2015 -): Wiring Diagram

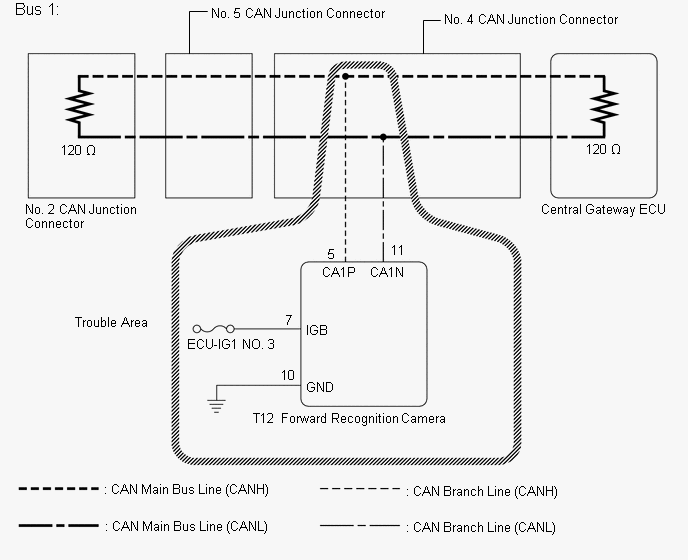

Fig 1: Forward Recognition Camara Wiring Diagram
GTY621202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
