Audio Receiver Assembly Communication Stop Mode (07/2015 -): Wiring Diagram

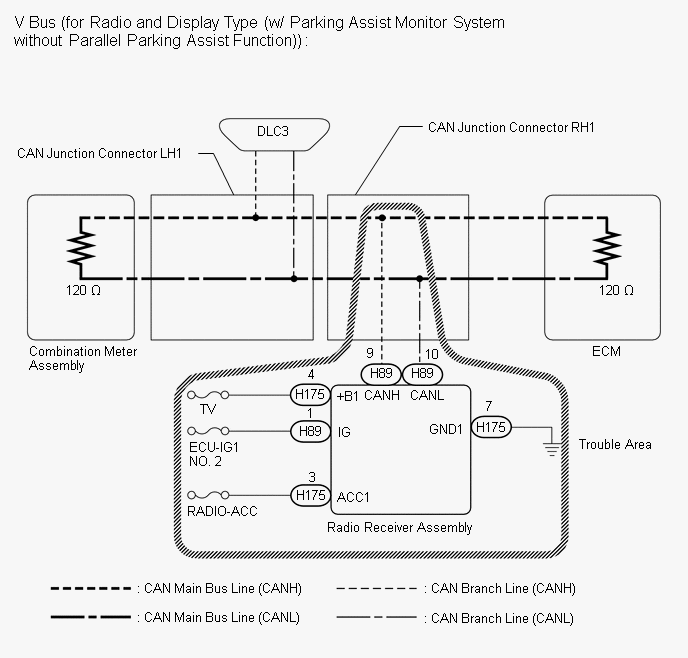

Fig 1: Radio Receiver Wiring Diagram (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

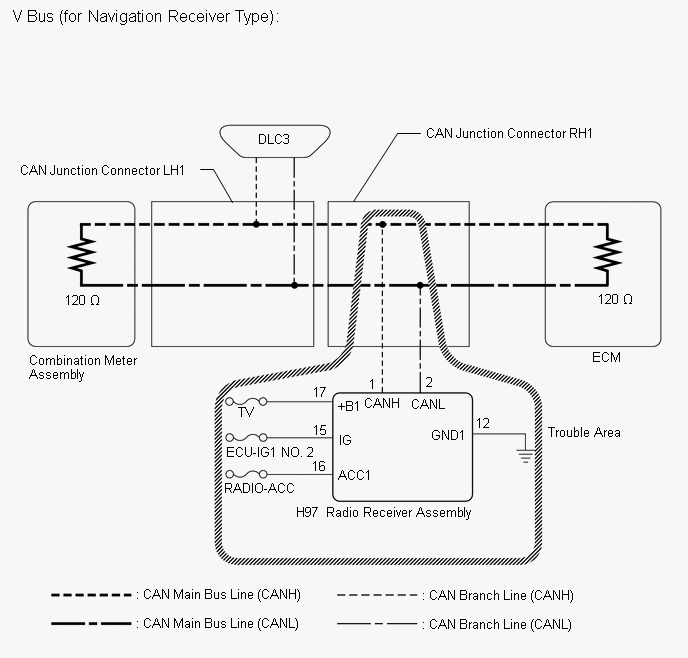

Fig 2: Radio Receiver Wiring Diagram (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

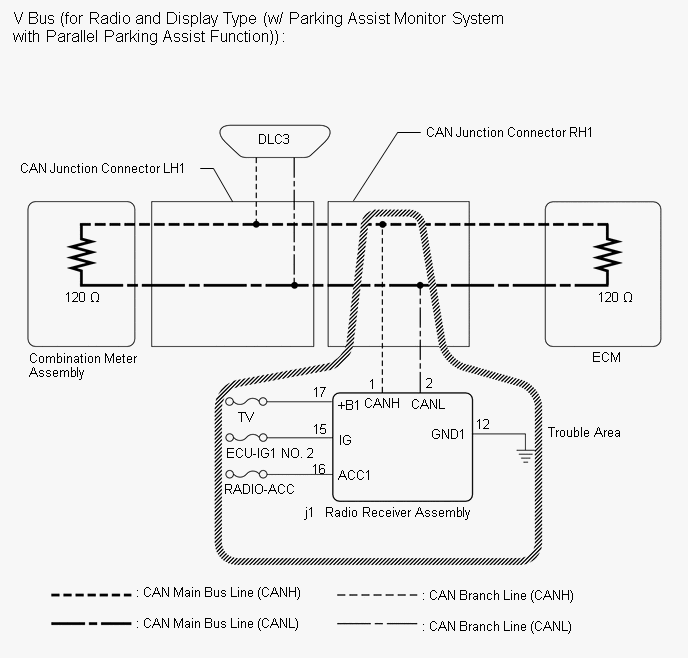

Fig 3: Radio Receiver Wiring Diagram (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
