Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter (07/2015 - 08/2016): Wiring Diagram

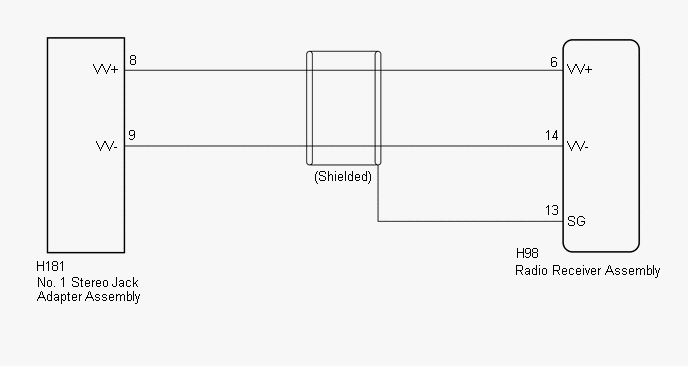

Fig 1: Display Wiring Diagram
GTY624305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
