Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display (07/2015 - 08/2016): Wiring Diagram

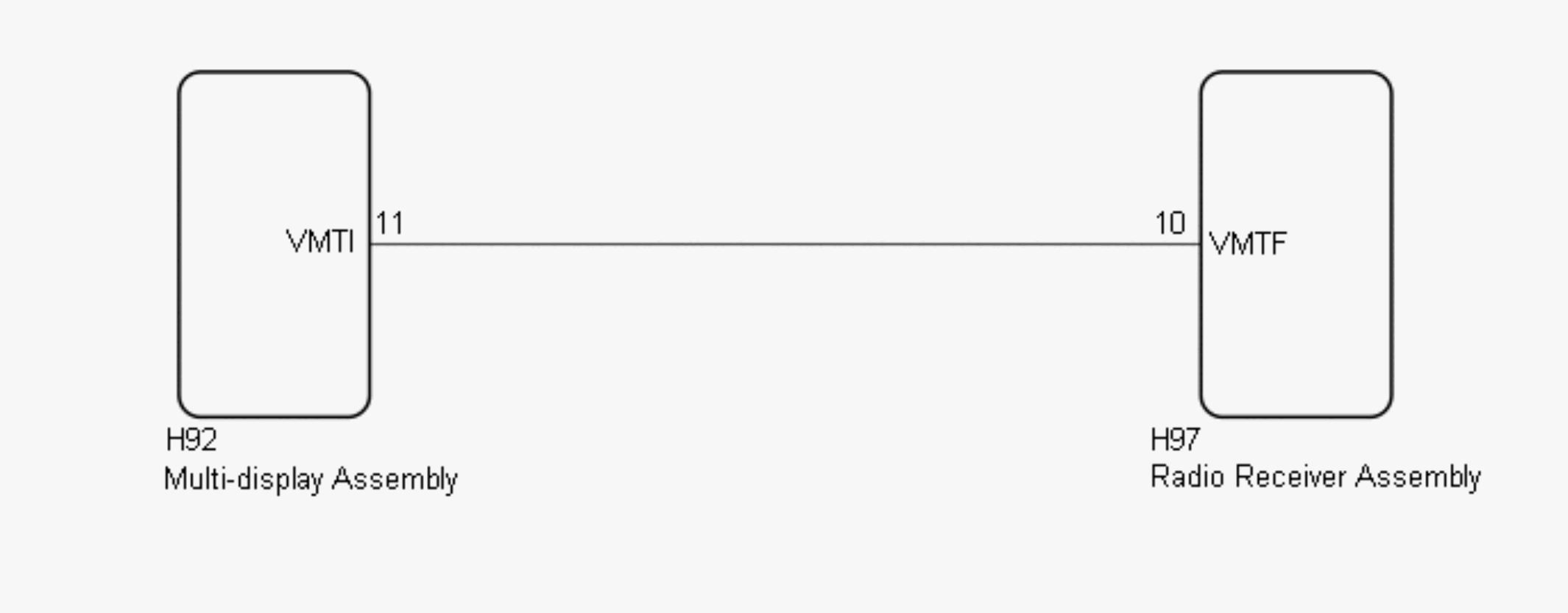

Fig 1: Visual Mute Wiring Diagram
GTY615993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
