Key Luggage Compartment Lock-in Prevention Function does not Operate (07/2015 -): Wiring Diagram

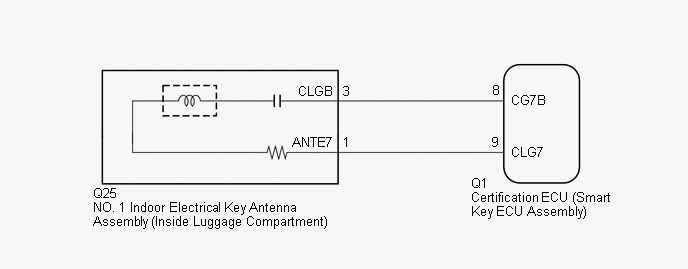

Fig 1: Indoor Electrical Key Antenna (Luggage Compartment) And Certification ECU Wiring Diagram
GTY675487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
