Rear Door RH Entry Lock and Unlock Functions do not Operate (07/2015 -): Procedure
- CHECK POWER DOOR LOCK CONTROL SYSTEM
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation (Refer to OPERATION CHECK (07/2015 -)
).
OK
Door locks operate normally.
Result: NG
NG
GO TO POWER DOOR LOCK CONTROL SYSTEM
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING (07/2015 -) )
Result: OK
OK
See step 2
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation (Refer to OPERATION CHECK (07/2015 -)
).
- CHECK WAVE ENVIRONMENT
- Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the rear door outside handle assembly RH (for rear door RH) and perform an entry function check (Refer to OPERATION CHECK (07/2015 -)
).TEXT IN ILLUSTRATION
*a Approximately 0.3 m (0.984 ft.) NOTE:Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.657 ft.) of the door handle.
HINT:
If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
Result
Result Proceed to Entry function does not operate normally A Entry function operates normally B
Result: B
B
AFFECTED BY WAVE INTERFERENCE
Result: A
A
See step 3
- Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the rear door outside handle assembly RH (for rear door RH) and perform an entry function check (Refer to OPERATION CHECK (07/2015 -)
).
- CHECK HARNESS AND CONNECTOR (REAR DOOR OUTSIDE HANDLE ASSEMBLY RH - CERTIFICATION ECU AND BODY GROUND)
- Disconnect the N8 rear door outside handle assembly RH (for rear door RH) connector.
- Disconnect the A36 and Q1 certification ECU (smart key ECU assembly) connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N8-3 (ANT2) - Q1 -4 (CG4B) Always Below 1 Ω N8-6 (ANT1) - Q1-3 (CLG4) Always Below 1 Ω N8-5 (B) - Q1-22 (POS4) Always Below 1 Ω N8-2 (GND) - Body ground Always Below 1 Ω A36-11 (E) - Body ground Always Below 1 Ω N8-3 (ANT2) or Q1-4 (CG4B) - Body ground Always 10 kΩ or higher N8-6 (ANT1) or Q1-3 (CLG4) - Body ground Always 10 kΩ or higher N8-5 (B) or Q1-22 (POS4) - Body ground Always 10 kΩ or higher
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: OK
OK
See step 4
- CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO REAR DOOR RH ELECTRICAL KEY ANTENNA)
- Disconnect the N8 rear door outside handle assembly RH (for rear door RH) connector.
- Connect the Q1 certification ECU (smart key ECU assembly) connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition N8-5 (B) - N8-2 (GND) Engine switch off → on (IG) 9 to 14 V → Below 2 V - Using an oscilloscope, check the waveform.
OK
Tester Connection Condition Tool Setting Specified Condition N8-3 (ANT2) - N8-6 (ANT1) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly brought outside vehicle
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- Electrical key transmitter sub-assembly brought outside detection area*
- All doors locked through wireless operation
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform) - *: For details about the areas that are inside the entry function detection area, refer to Operation Check (Refer to OPERATION CHECK (07/2015 -) ).

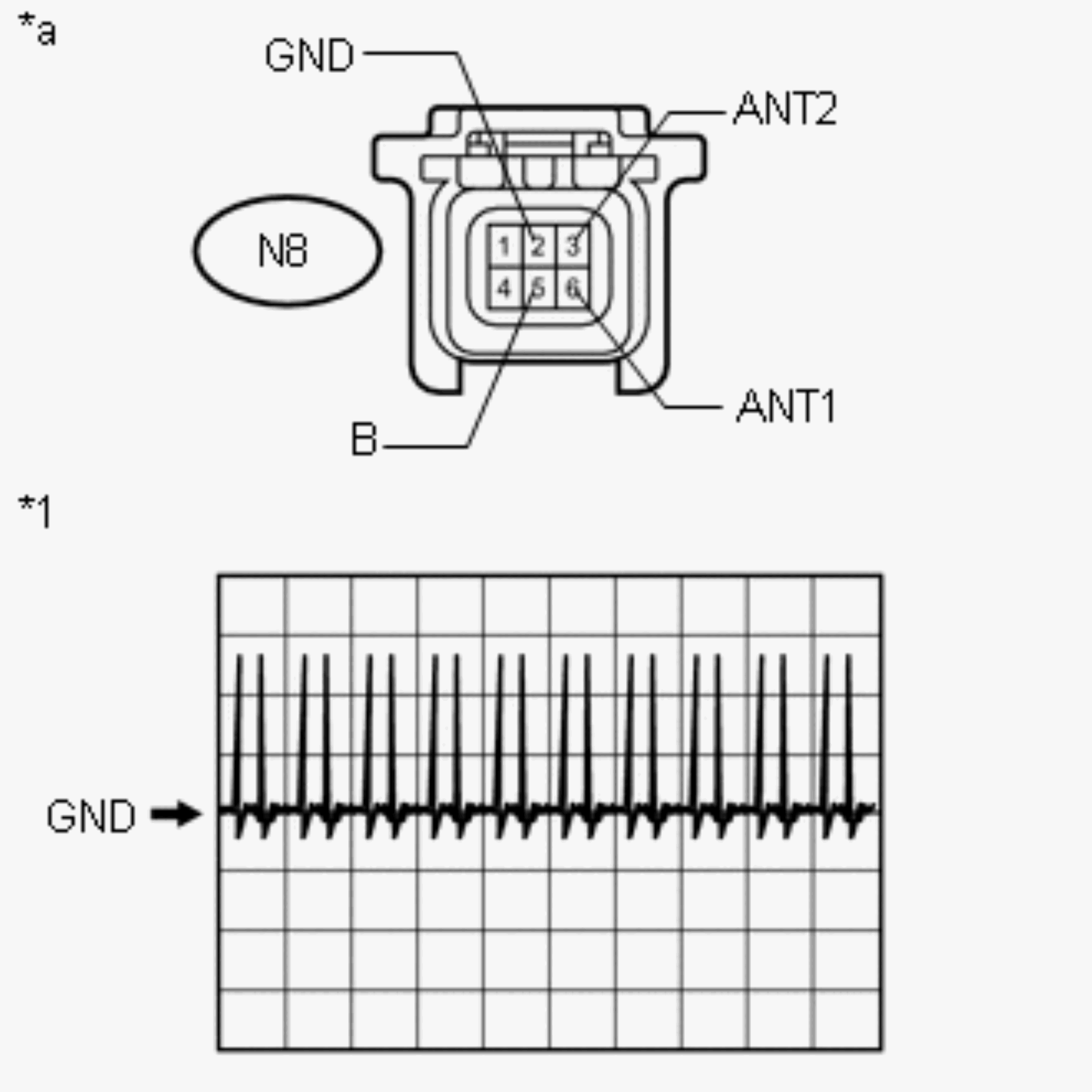

TEXT IN ILLUSTRATION*1 Waveform *a Front view of wire harness connector
(to Rear Door Outside Handle Assembly RH (for Rear Door RH)
Result: NG
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL (07/2015 -) )
Result: OK
OK
See step 5
- Disconnect the N8 rear door outside handle assembly RH (for rear door RH) connector.
- REPLACE REAR DOOR OUTSIDE HANDLE ASSEMBLY RH (FOR REAR DOOR RH)
- Temporarily replace the rear door outside handle assembly RH (for rear door RH) with a new or known good one (Refer to DISASSEMBLY (07/2015 -) ).
Result: NEXT
NEXT
See step 6
- CHECK REAR DOOR OUTSIDE HANDLE ASSEMBLY RH (FOR REAR DOOR RH) (OPERATION)
- Check that the entry functions operate normally (Refer to DISASSEMBLY (07/2015 -)
).
OK
Entry functions operate normally.
Result: OK
OK
END (REAR DOOR OUTSIDE HANDLE ASSEMBLY RH (FOR REAR DOOR RH) WAS DEFECTIVE)
Result: NG
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL (07/2015 -) )
- Check that the entry functions operate normally (Refer to DISASSEMBLY (07/2015 -)
).
