Rear Door RH Entry Lock and Unlock Functions do not Operate (07/2015 -): Wiring Diagram

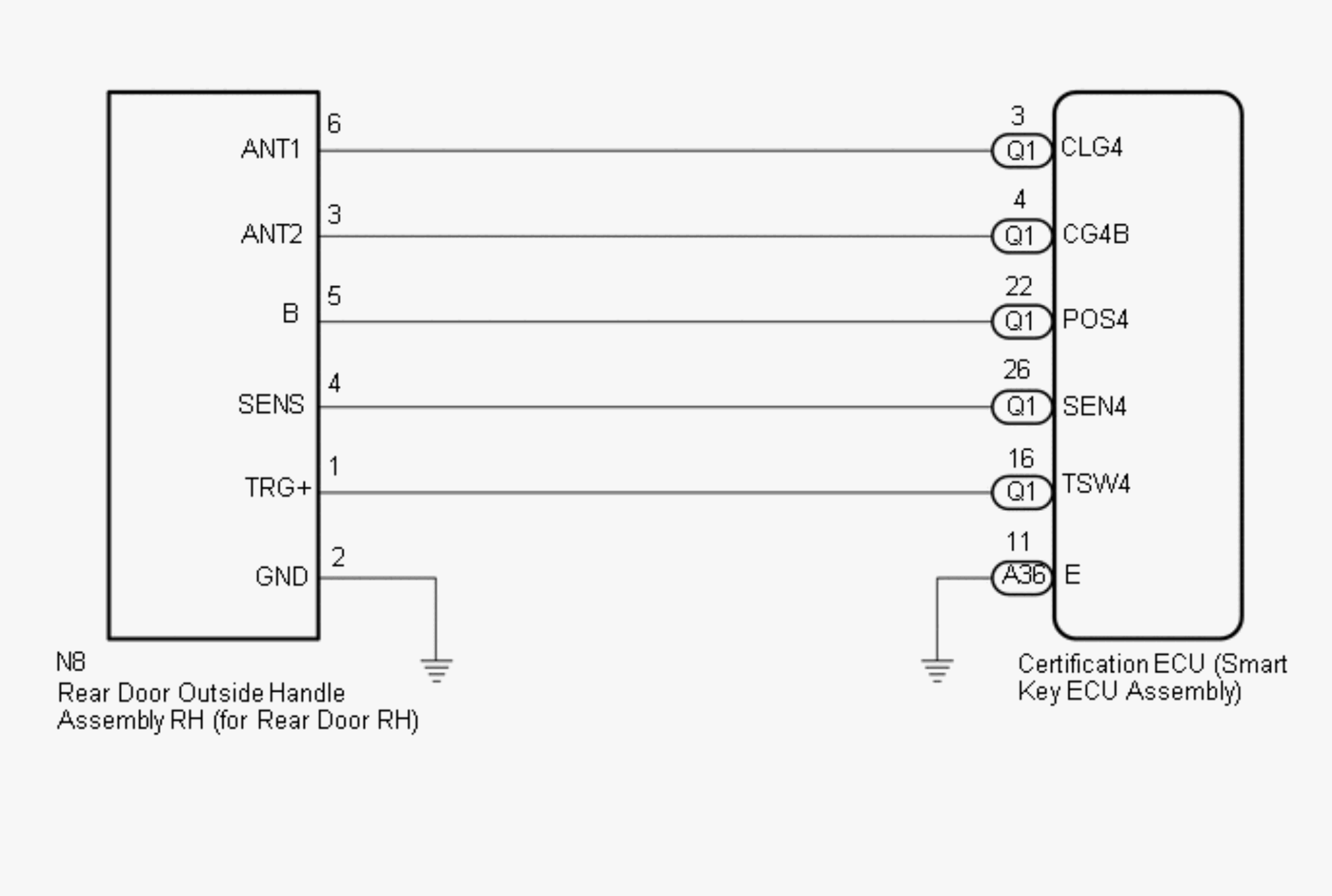

Fig 1: Outside Door Handle And Certification ECU Wiring Diagram
GTY614737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
