Room Oscillator does not Recognize Key (07/2015 -): Wiring Diagram

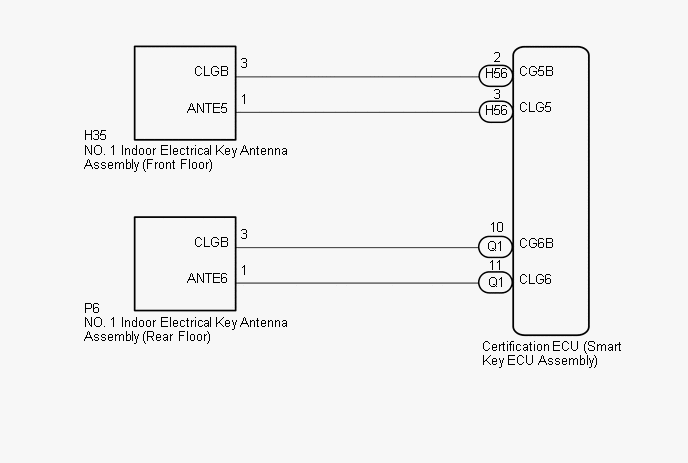

Fig 1: Indoor Electrical Key Antennas And Certification ECU Wiring Diagram
GTY684126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
