Power Source Mode does not Change to ON (ACC) (07/2015 -): Wiring Diagram

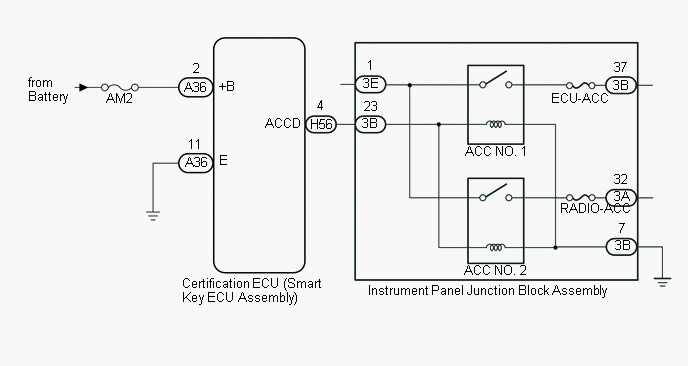

Fig 1: Certification ECU And instrument Panel Junction Block Wiring Diagram
GTY634707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
