Front Power Seat Control System (W/ Memory) (Diagnostic Codes & Symptom Tests)
>>
Front Power Seat Control System (W/ Memory)
>>
Power Seat Power Easy Access System Function does not Operate (07/2015 -)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Seat Power Easy Access System Function does not Operate (07/2015 -): Wiring Diagram

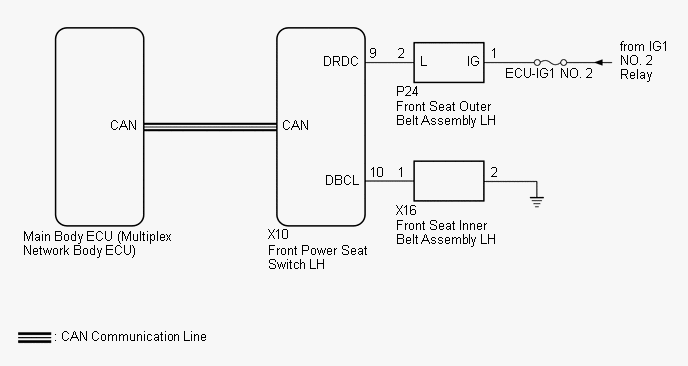

Fig 1: Power Seat CAN Circuit Wiring Diagram (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
