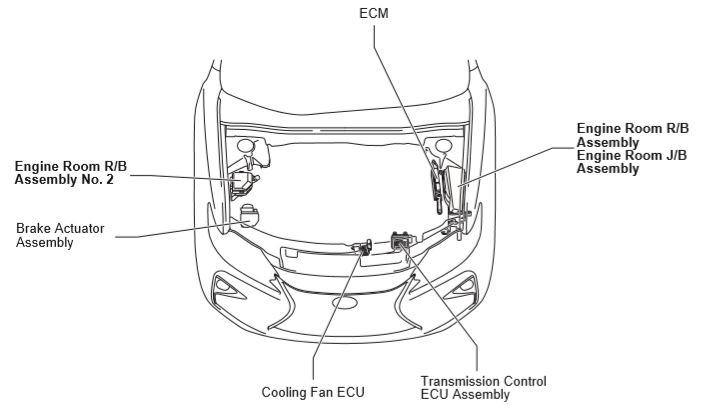

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly - Front Fender Apron LH: Notes

For additional information, refer to Figure.

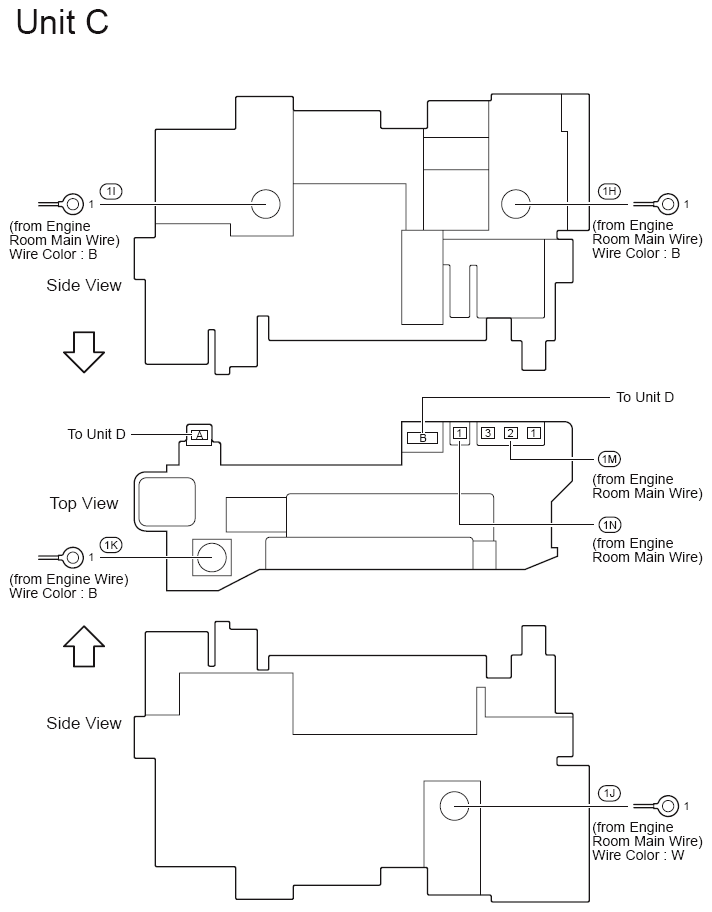

Fig 1: Engine Room R/B And J/B Assembly (Unit C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

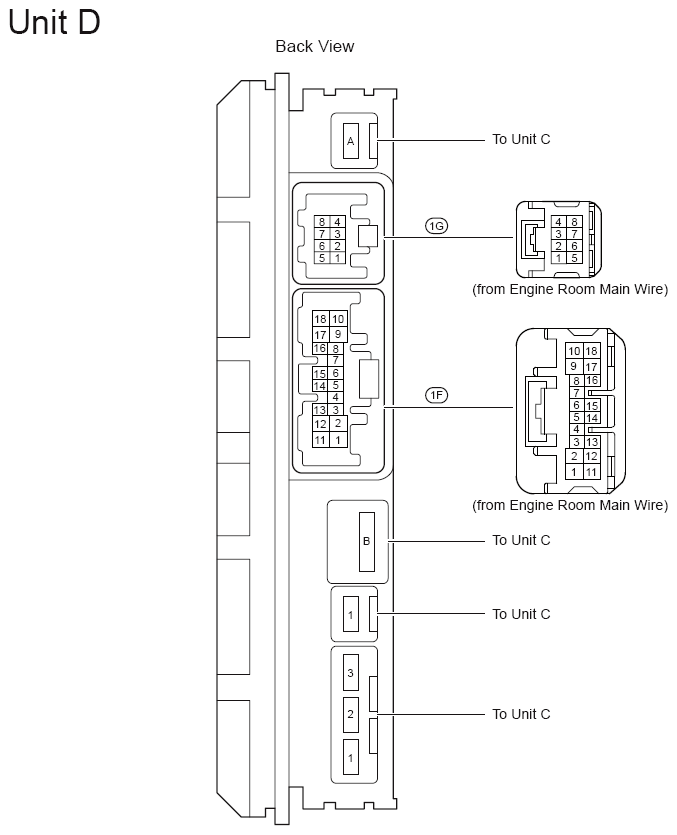

Fig 2: Engine Room R/B And J/B Assembly (Unit D)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
