Engine Room Relay Block Assembly And Engine Room Junction Block Assembly - Front Fender Apron LH: Overview

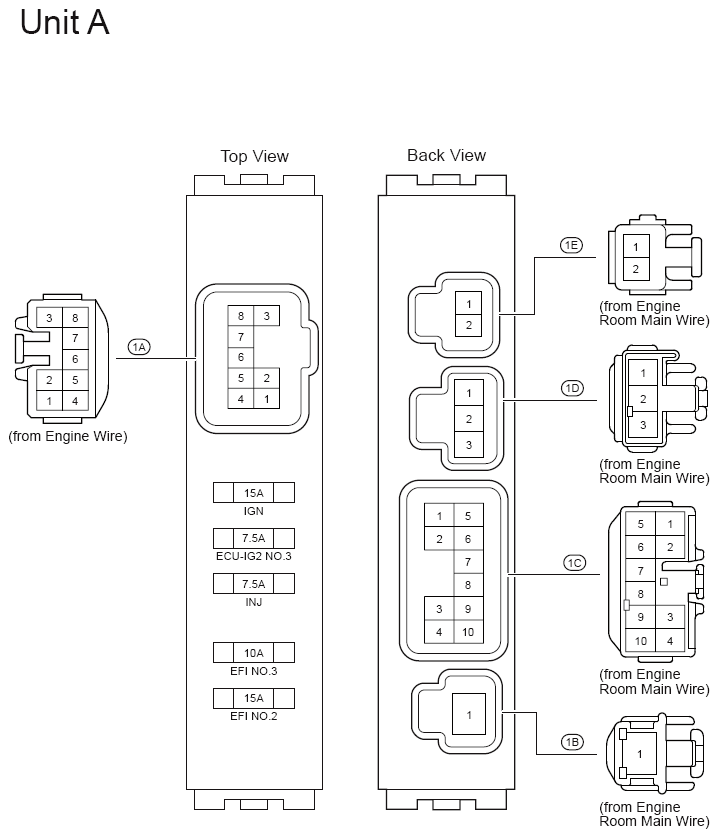

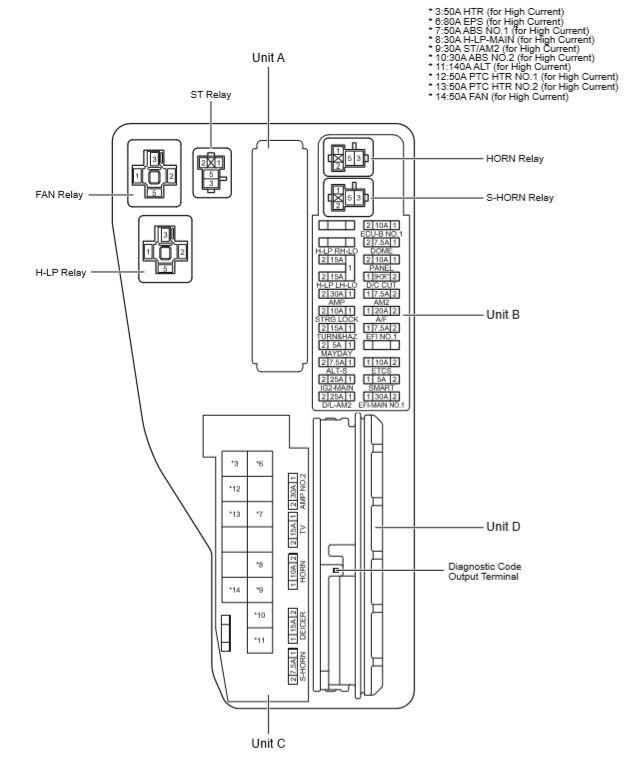

For additional information, refer to Figure.
ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| H-LP Relay |
| Fan Relay |
| ST Relay |
| Horn Relay |
| S-Horn Relay |
ENGINE ROOM R/B AND J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | MAYDAY | LEXUS ENFORM or Safety Connect |
| 5A | SMART | Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| Seat Belt Warning | ||
| SRS | ||
| 7.5A | ALT-S | Charging |
| 7.5A | AM2 | Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| 7.5A | DOME | Clock |
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Illumination and Taillight | ||
| Interior Light | ||
| 7.5A | ECU-IG2 NO. 3 | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| 7.5A | EFI NO. 1 | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 7.5A | INJ | Combination Meter |
| Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| 7.5A | S-HORN | Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent |
| 10A | ECU-B NO. 1 | ABS, Brake Assist, EBD, TRAC and VSC |
| Air Conditioning | ||
| Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) | ||
| Audio System (w/o LEXUS Navigation System) (w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System) (w/Multi-Media Module Receiver Assembly) and Parking Assist (Rear View Monitor) | ||
| Automatic Glare-Resistant EC Mirror with Compass and Garage Door Opener | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Blind Spot Monitor System | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Lane Departure Alert | ||
| LEXUS ENFORM or Safety Connect | ||
| Light Reminder | ||
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Sunshade | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Wiper and Washer (w/Auto Wiper System) | ||
| 10A | EFI NO. 3 | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 10A | ETCS | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 10A | HORN | Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent |
| Horn | ||
| 10A | PANEL | Illumination and Taillight |
| 10A | STRG LOCK | Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| 15A | DEICER | Front Window Deicer |
| 15A | EFI NO. 2 | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 15A | H-LP LH-LO | Headlight |
| 15A | H-LP RH-LO | Headlight |
| 15A | IGN | Ignition |
| 15A | TURN&HAZ | Combination Meter |
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Turn Signal and Hazard Warning Light | ||
| 15A | TV | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) (w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System) (w/Multi-Media Module Receiver Assembly) and Parking Assist (Rear View Monitor) | ||
| 20A | A/F | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 20A | D/L-AM2 | Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent |
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| 25A | IG2-MAIN | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 30A | ABS NO. 2 | ABS, Brake Assist, EBD, TRAC and VSC |
| Lane Departure Alert | ||
| 30A | AMP | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) (w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System) (w/Multi-Media Module Receiver Assembly) and Parking Assist (Rear View Monitor) | ||
| 30A | AMP NO. 2 | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) (w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System) (w/Multi-Media Module Receiver Assembly) and Parking Assist (Rear View Monitor) | ||
| 30A | EFI-MAIN NO. 1 | Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 30A | H-LP-MAIN | Adaptive Front-Lighting System Automatic Light Control Door Lock Control Headlight Headlight Beam Level Control Immobiliser System Starting Steering Lock Theft Deterrent Wireless Door Lock Control |
| 30A | H-LP-MAIN | Automatic Light Control and Light Auto Turn Off System |
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| 30A | ST/AM2 | Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| 50A | ABS NO. 1 | ABS, Brake Assist, EBD, TRAC and VSC |
| Lane Departure Alert | ||
| 50A | FAN | Cooling Fan |
| 50A | HTR | Air Conditioning |
| 50A | PTC HTR NO. 1 | Air Conditioning |
| 50A | PTC HTR NO. 2 | Air Conditioning |
| 80A | EPS | EPS |
| 140A | ALT | ABS, Brake Assist, EBD, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Charging | ||
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Fuel Lid Opener | ||
| Headlight | ||
| Illumination and Taillight | ||
| Mirror Heater (w/o Seat Position Memory) and Rear Window Defogger | ||
| Stop Light | ||
