DTC U0110-159: Lost Communication with Drive Motor Control Module "A"; DTC U0110-656: Lost Communication with Drive Motor Control Module "A"; DTC U0110-657: Lost Communication with Drive Motor Control Module "A" [09/2014 - 10/2015]: Wiring Diagram

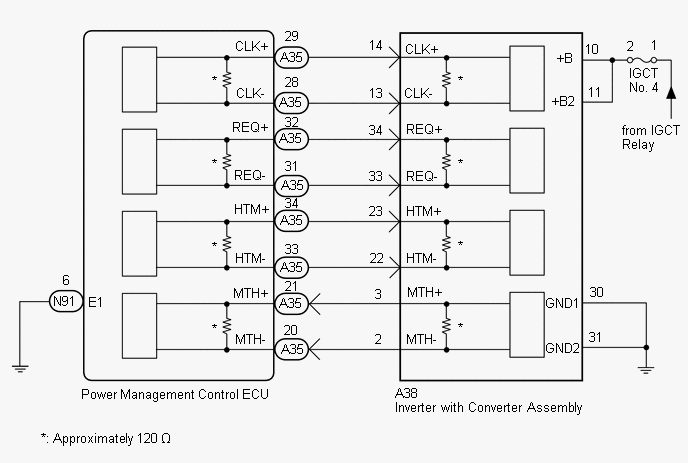

Fig 1: Drive Motor Control Module Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
